Dual Direction Solenoid

SKU: Dual Direction SolenoidCategories: Accessories
About Dual Direction Solenoid
Technical Specifications

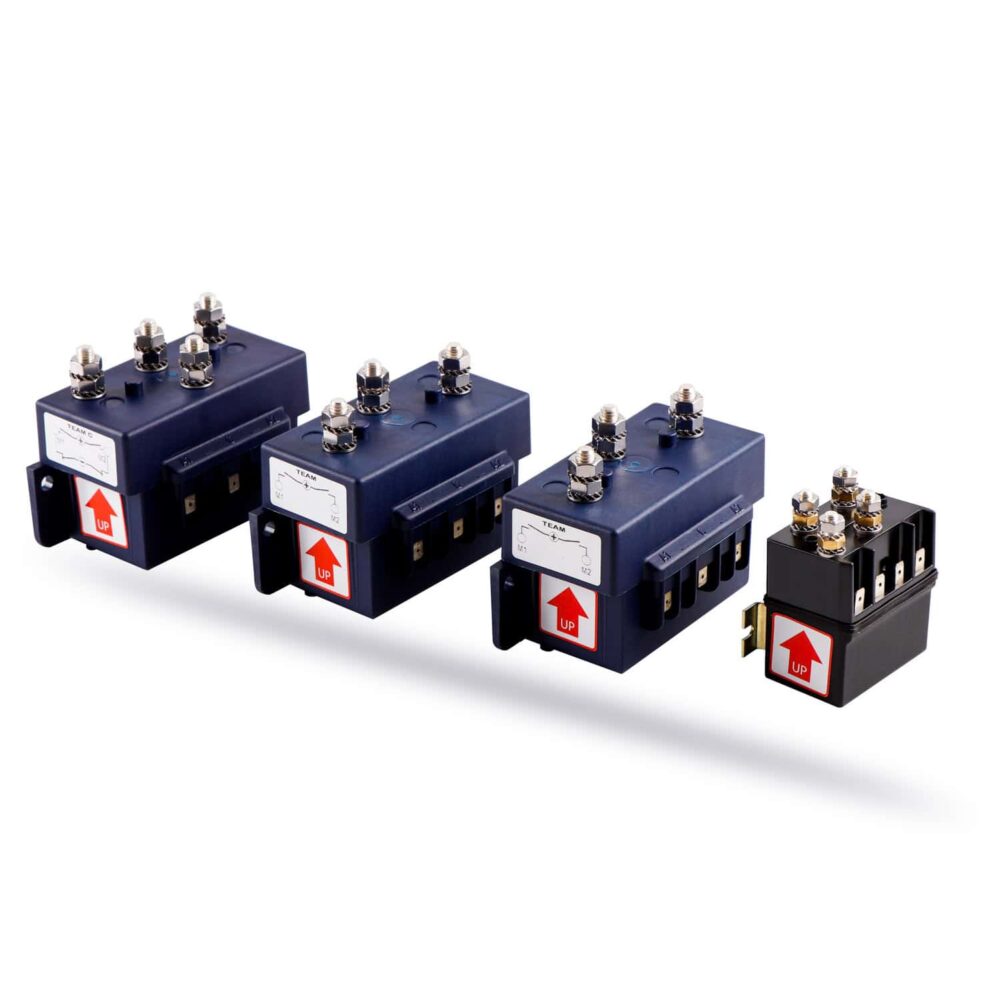

Muir reversing solenoids allow for dual directional operation of your Muir windlasses and capstans. Use with up/down switches, deck switches, remote panels, and auto anchor systems. Muir reversing solenoids are designed to withstand harsh marine environments and are rated for 3 million cycles, much longer than typical solenoids. Muir reversing solenoids are available in different voltages (12V or 24V) and poles (2, 3, or 4) to suit. Please refer to the selection table below to find the specific solenoid for your Muir model.

Solenoid Selection Table

Windlass Model

Watts

12V

24V

VR/C 0600 600W 2P P801043 4P P801051
VR/C 0850 600W 2P P801043 4P P801051
VR/C 1250 1000W 2P P801043 4P P801051
VR/C 2200 1200W 3P P801045 3P P801050
VR/C 2500 1200W 3P P801045 3P P801050
VR/C 3500 1500W 3P P801045 3P P801050
VR/C 4000 2000W N/A 4P P801051
VFF 0600 600W 2P P801043 4P P801051
VM/VMC 0500 N/A N/A
HR 0650 / HC650 Lynx 400W 2P P801043 4P P801051
HR 1600 Cougar 1000W 3P P801045 3P P801050
HR 2500 Cheetah 1200W 3P P801045 3P P801050
HR 3500 Jaguar 1500W 3P P801045 3P P801050
HR 4000 Thor 1500W 3P P801045 3P P801050
HR 4200 Thor 2000W N/A 4P P801051
VC 0500 600W 2P P801043 4P P801051
VC 0650 600W 2P P801043 4P P801051
VC 0850 1000W 3P P801045 3P P801050
VC 2500 1200W 3P P801045 3P P801050
VC 3500 1500W 3P P801045 3P P801050
VC 0800 (Easyweigh) 600W 2P P801043 4P P801051
H 0900 (Easyweigh) 900W 2P P801043 4P P801051
V 0900 (Easyweigh) 900W 2P P801043 4P P801051
DW 06 400W 2P P801043 4P P801051
DW 08 600W 2P P801043 4P P801051
DFF 08 600W 2P P801043 4P P801051
DW 10 1000W 3P P801045 3P P801050
DFF 10 1000W 3P P801045 3P P801050
DW 12 1200W 3P P801045 3P P801050
DW 15 1500W 3P P801045 3P P801050

    Additional information

    Weight N/A
    Solenoid

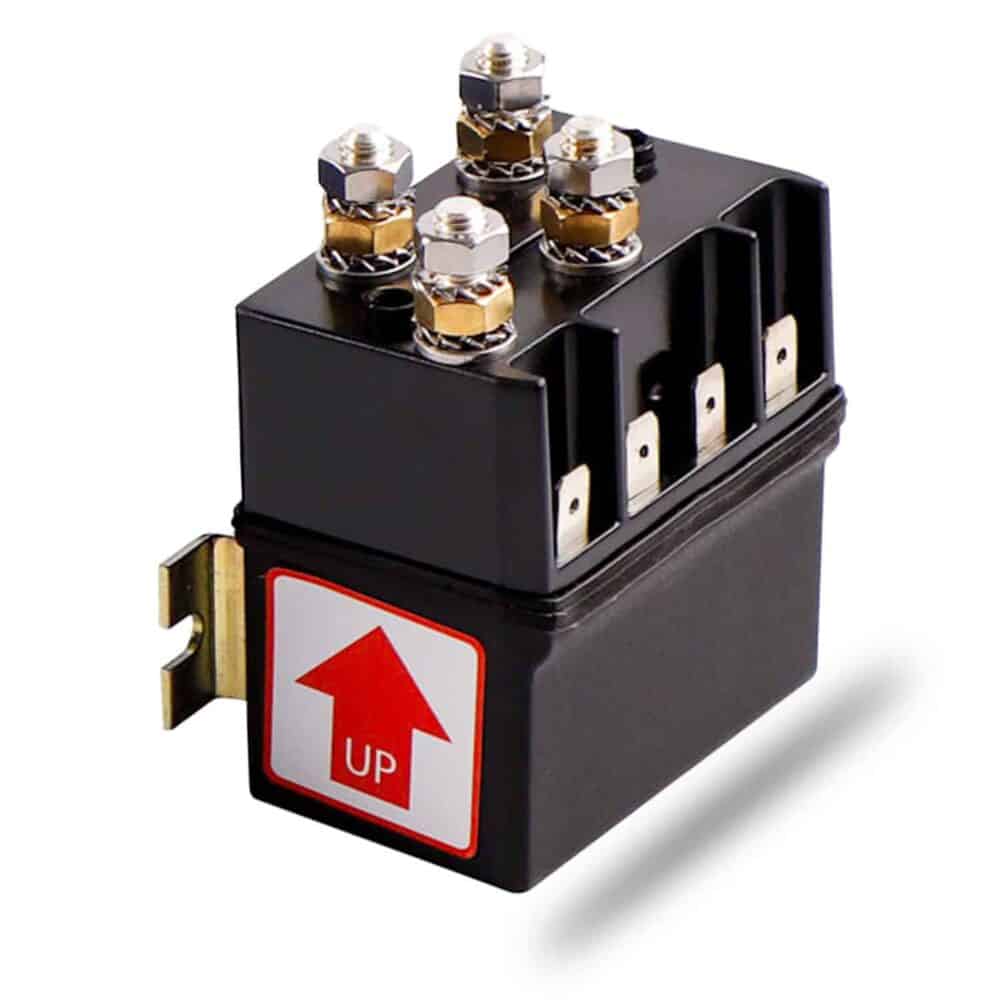

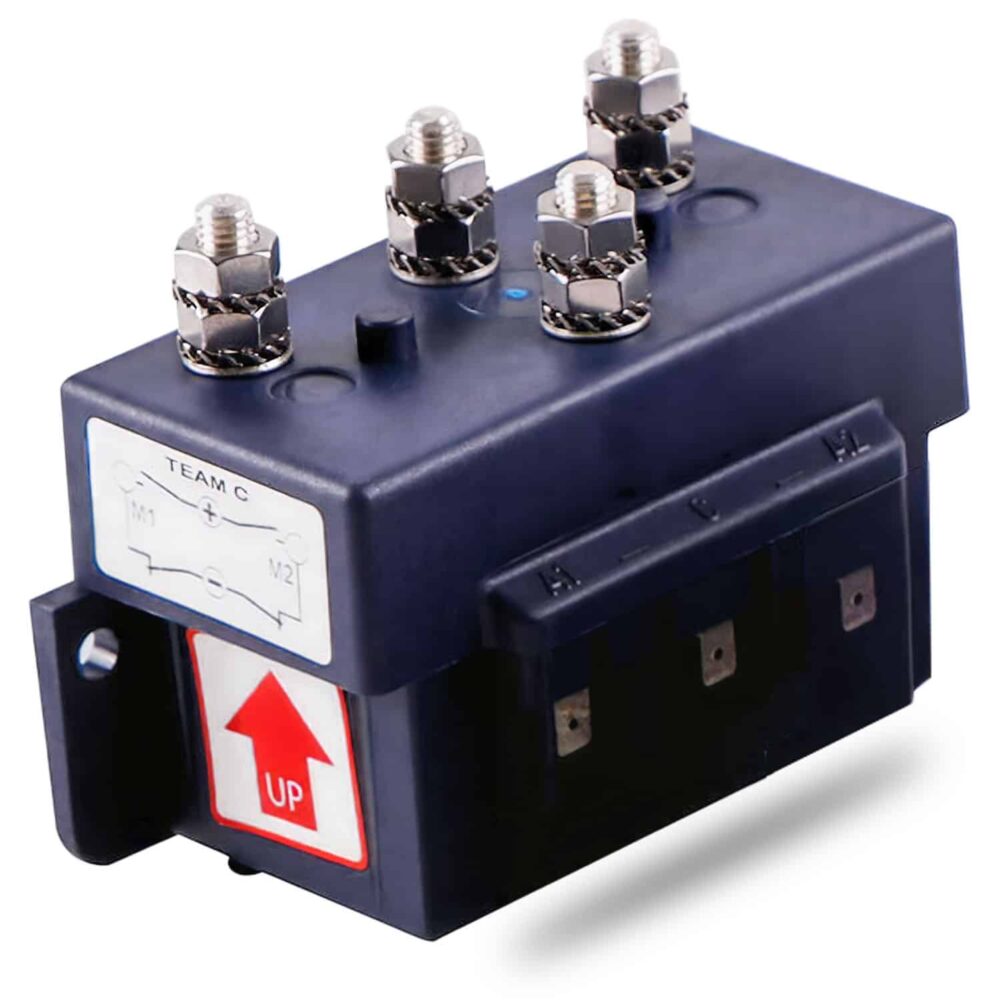

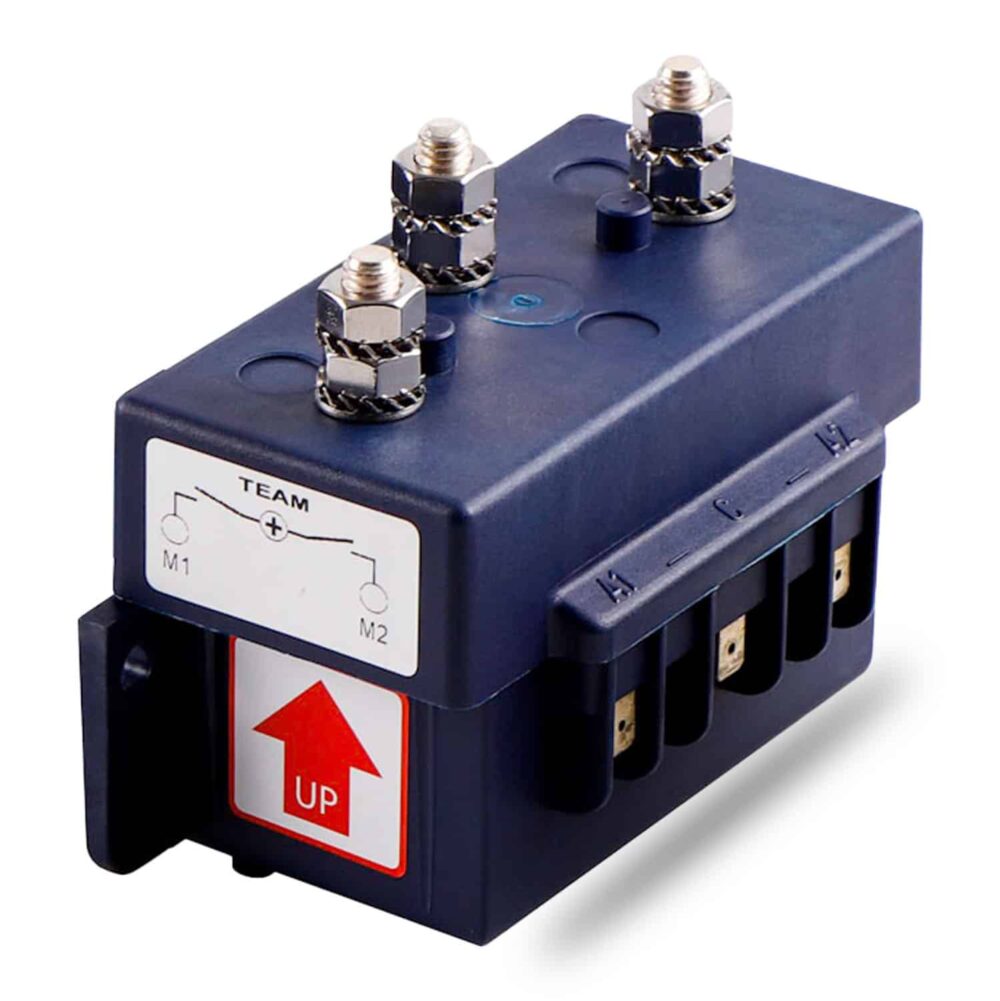

    P801043 Dual 12VDC 2P/4Pole (600w now 800w Motors), P801045 – Dual 12VDC 3Pole (1200w, 1500w Motors), P801050 – Dual 24VDC 3Pole (1200w, 1500w Motors), P801051 – Dual 24VDC 2/4 Pole (600, 900, 1000, 2000w Motors)
