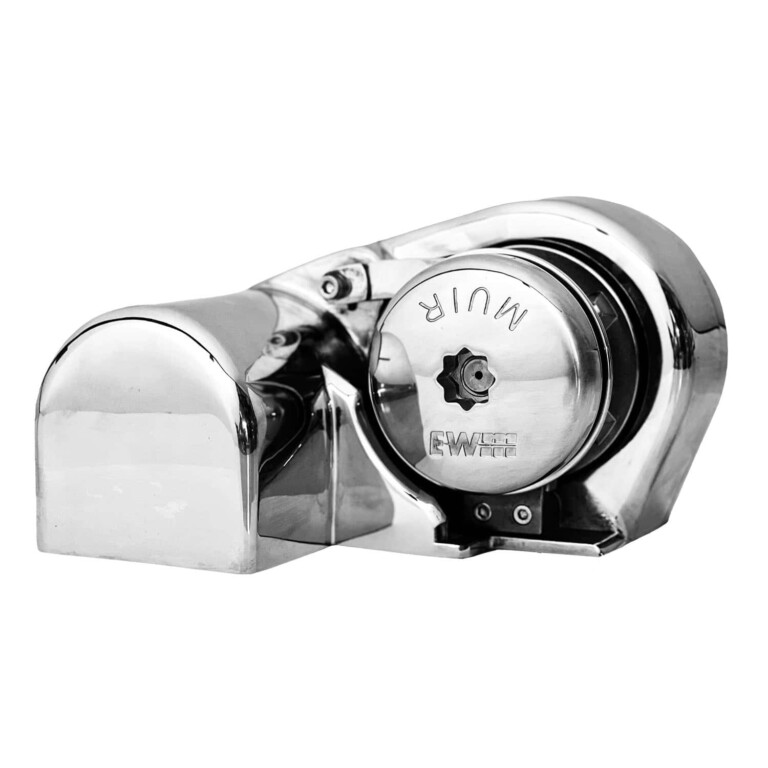

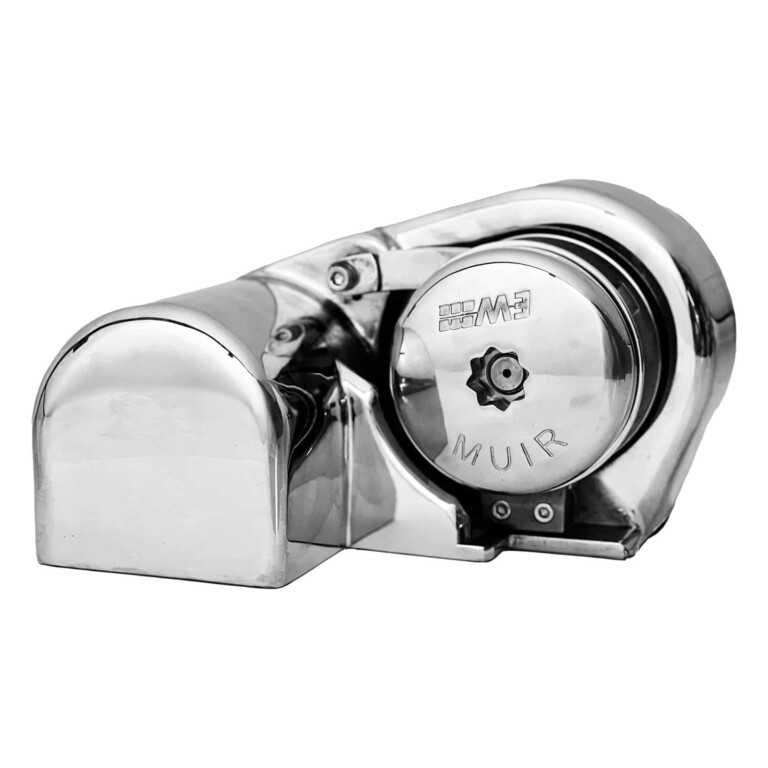

Muir Easyweigh H900 Horizontal Rope/Chain Windlass | 6–11m
Muir Easyweigh H900 horizontal rope/chain windlass for vessels 6–11m. 900W 12V DC, 510kg max load, polished stainless, Rope Chain Management System (RCMS).
Features
- Polished stainless steel components
- Rope Chain Management System (RCMS)
- Suits multiple global chain standards
Drawings
Top View
Side View
VR
Included in the package
Circuit Breaker & Mounting Pannel
Rocker Switch
Deck mounting studs & fasteners
Clutch release handle
Reversing Solenoid kit
Installation/Operation booklet
| Name | Specifications |
|---|---|
| Recommended Vessel Length | 6-11m |
| Power Supply Options | DC 12V |
| Recommended Muir Circuit Breaker | 100A (12V) |
| Motor (Watts) | 900Watts |
| Amps Workload | 100A (12V) |
| Max Load | 510Kg |
| Workload | 170Kg |
| Max Line Speed | 23m/min |
| Compatible Chain Sizes | 6 mm (1/4") - 8 mm (5/16") |
| Compatible Rope Sizes | 12 mm (1/2″) – 14 mm (9/16″) |
| Auto Anchor Compatible | No |
| Net Weight DC | 13Kg |
| Manual Operation | N/A |
Download
