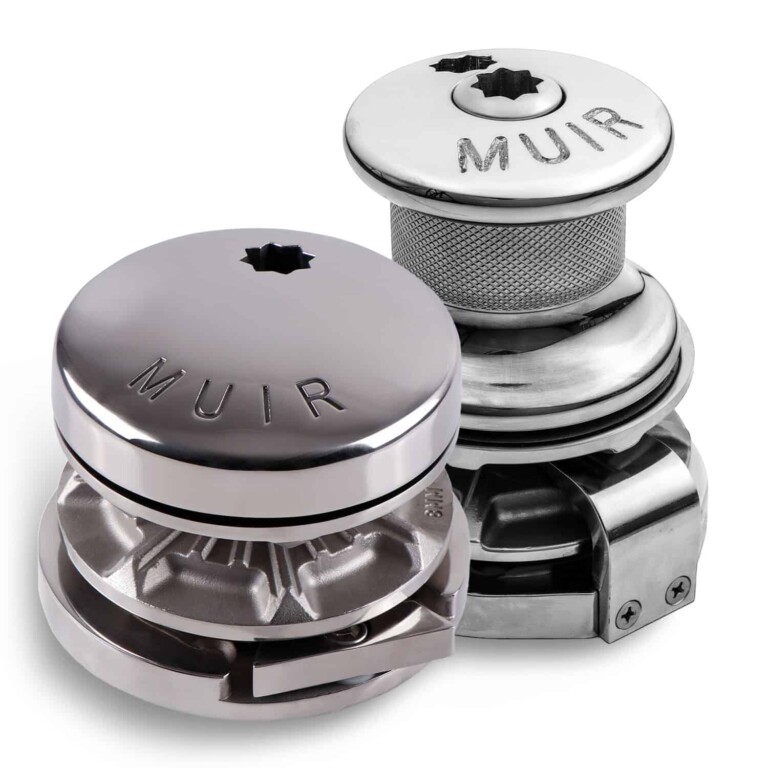

Manual Vertical VM/VMC500 Windlass | Vessels 6-12m (19 – 38ft).
This Muir Manual Vertical VM/VMC500 design for vessels 6-12m (19 – 38ft).
Not everyone needs or wants power, so the Manual Vertical series is designed with those in mind. Suited for vessels up to 12m, the above deck installation is fast and straightforward. The manual series is available in a round base configuration (VM500). Featuring an independent low-profile top or capstan and gypsy. The units can also be mounted horizontally in the anchor locker or used as an auxiliary units for line hauling or fishing use.
The low profile, lightweight, compact design makes this unit ideal for the racing enthusiast who cannot afford the weight or space of a powered windlass or for those doing serious ocean cruising or racing who can’t afford to rely on battery power.
Precision-engineered, allowing for efficient hauling. The ratchet manual operation system is operated with a standard sheet winch handle and manually released with the same handle.
Features
- Stainless Steel / Chrome Bronze components
- Chain only
- Capstan models feature a knurled grip
- Independent gypsy and capstan operation

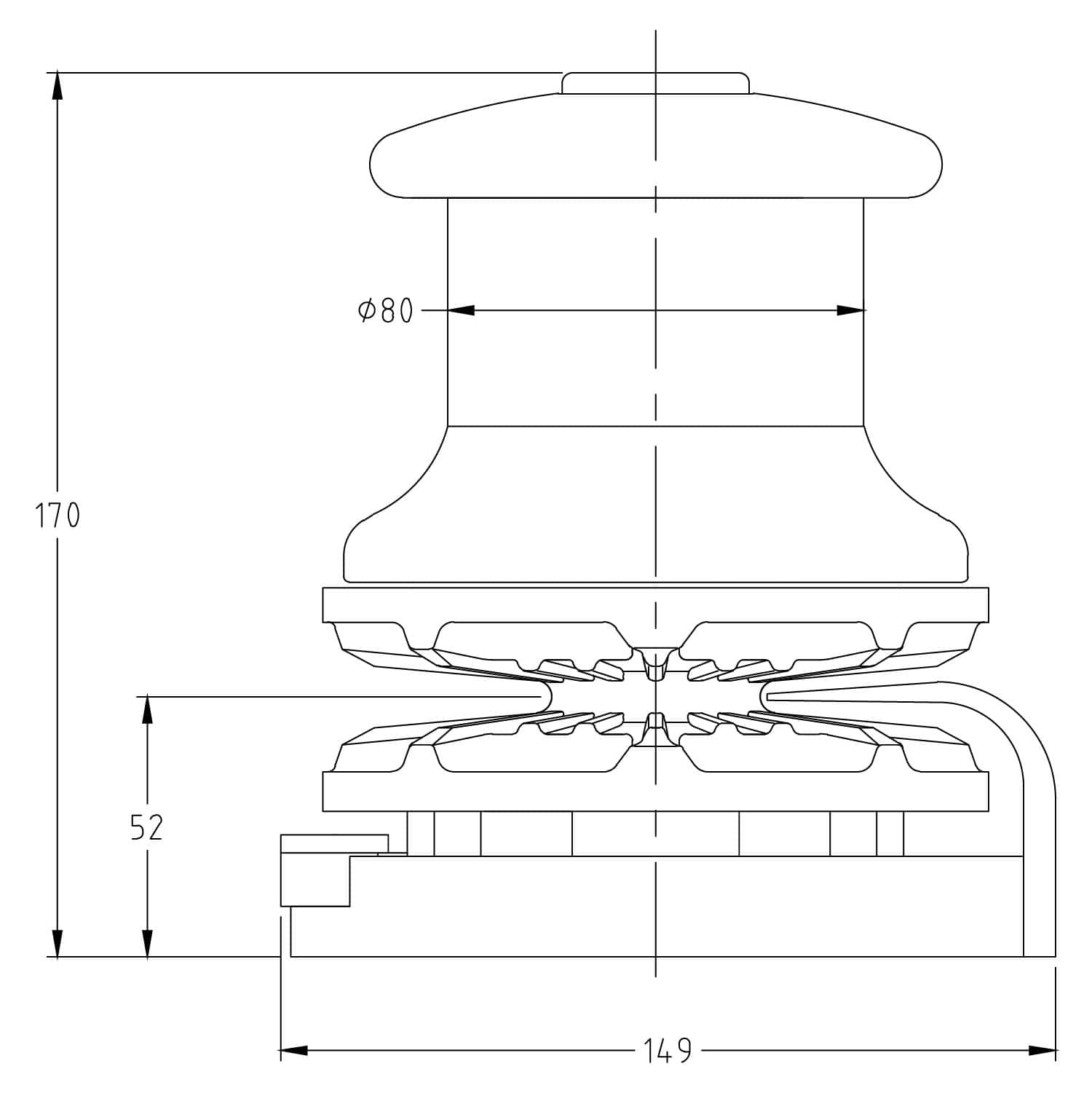

Drawings

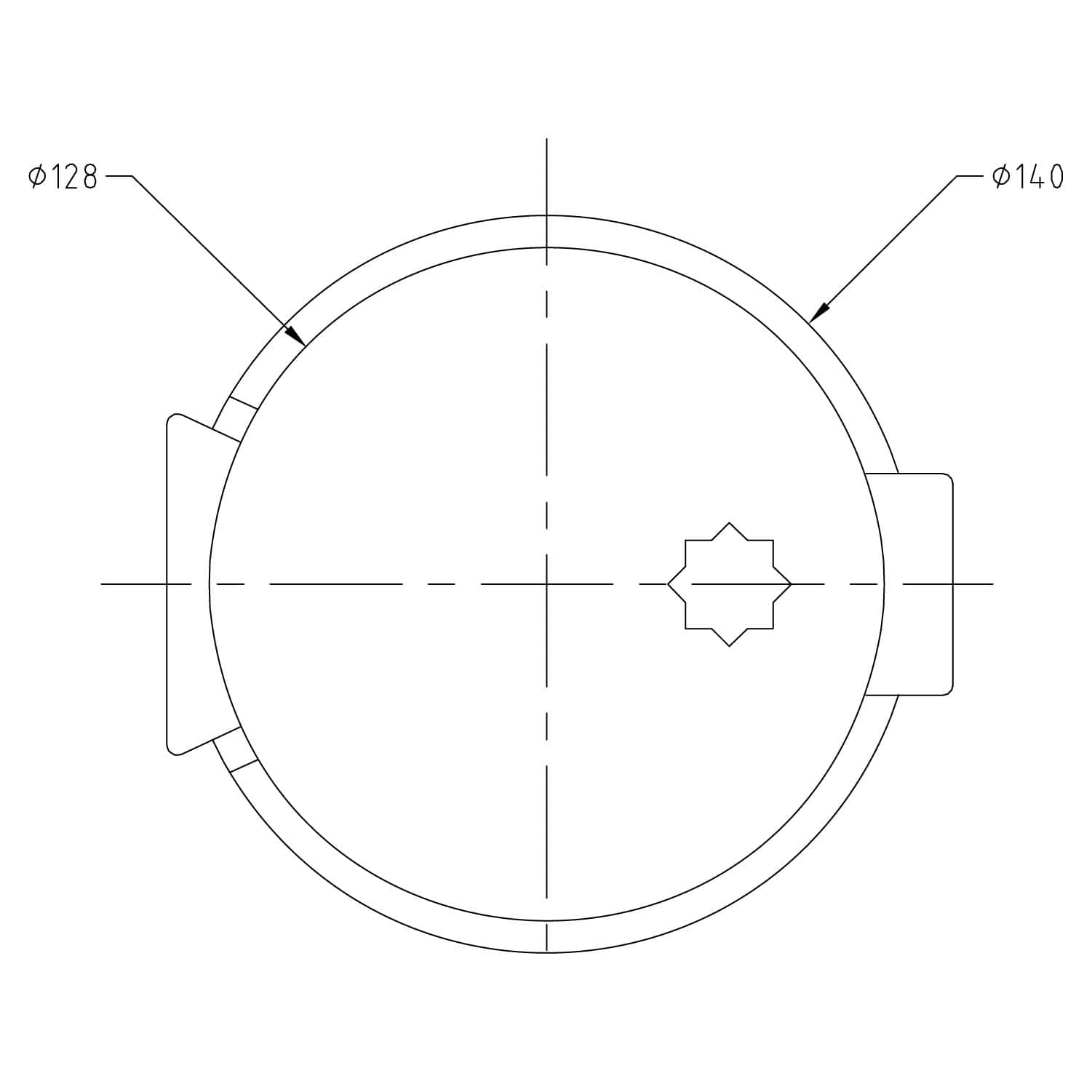

Top View
VR
VRC
Included in the package
Deck mounting studs & fasteners
Clutch release handle
Installation/Operation booklet
| Name | Specifications |
|---|---|
| Recommended Vessel Length(m) | 6-12m |
| Recommended Vessel Length(ft) | 19 - 38ft |
| Power Supply Options | Manual |
| Max Load | 227Kg |
| Compatible Chain Sizes | 6 mm (1/4") - 10 mm (3/8") |
| Compatible Rope Sizes | 12 mm (1/2″) – 16 mm (5/8″) |
| Auto Anchor Compatible | No |
| Net Weight DC | 5.5Kg |
