Storm VR/VRC2500
Unsure of your chain?
Use our Calculation Tool to determine your chain size and standard, ensuring a perfect fit with your Muir Windlass.
Chain Selection GuideStorm VR/VRC2500 Windlass | Muir Australia

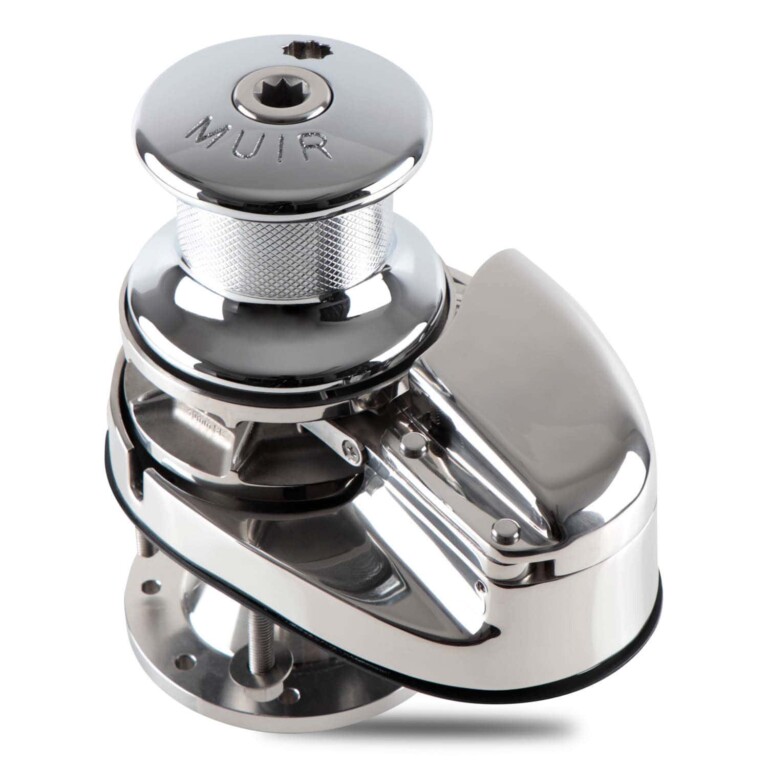

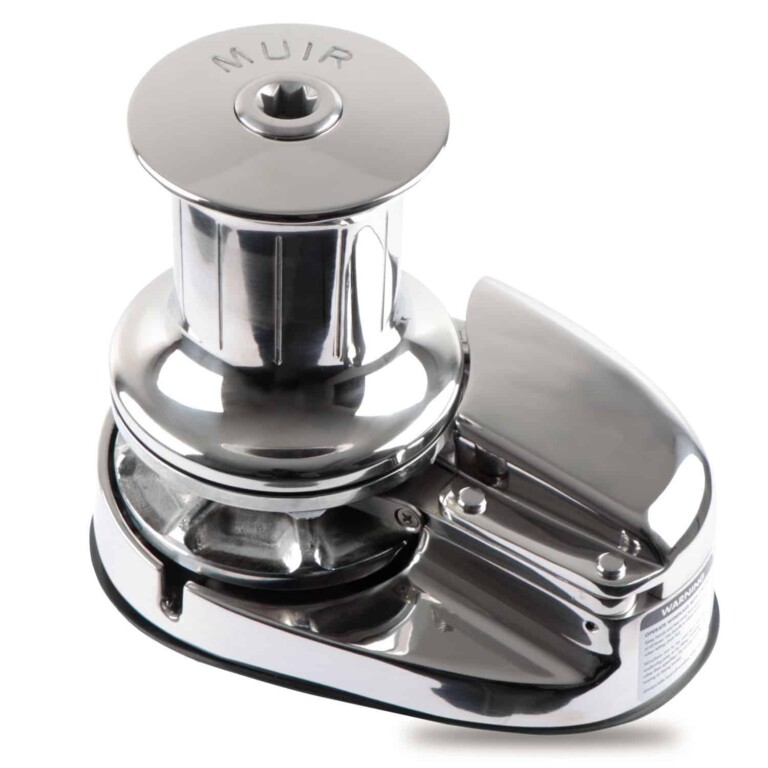

This Storm VR/VRC2500 designed for vessels up to 18m (59ft), and in low profile and capstan configurations, they offer fast powered retrieval, smooth rope chain combination operation, reduced installation time, style and unbeatable reliability. Manufactured from polished stainless steel components the Storm Windlass will weather the harshest of conditions.
Storm Windlasses represent the pinnacle of reliability and performance and are packed with the features and quality you have come to expect from Muir. Designed on the principles of the award-winning Atlantic series with all its features and more.
Features
- Polished stainless steel components
- High tensile stainless steel shaft
- Heavy duty, marine grade, dual-direction motor
- Superior, heavy-duty Oil bath worm drive gearbox
- Rope Chain Management System (RCMS)
- Quick-Access Chain Pipe Cover
- Self-lubricating bush
- Capstan models feature a knurled grip
- Independent gypsy and capstan operation
- Suits multiple global chain standards
- Deck Isolation Pad Included
Drawings
Top View

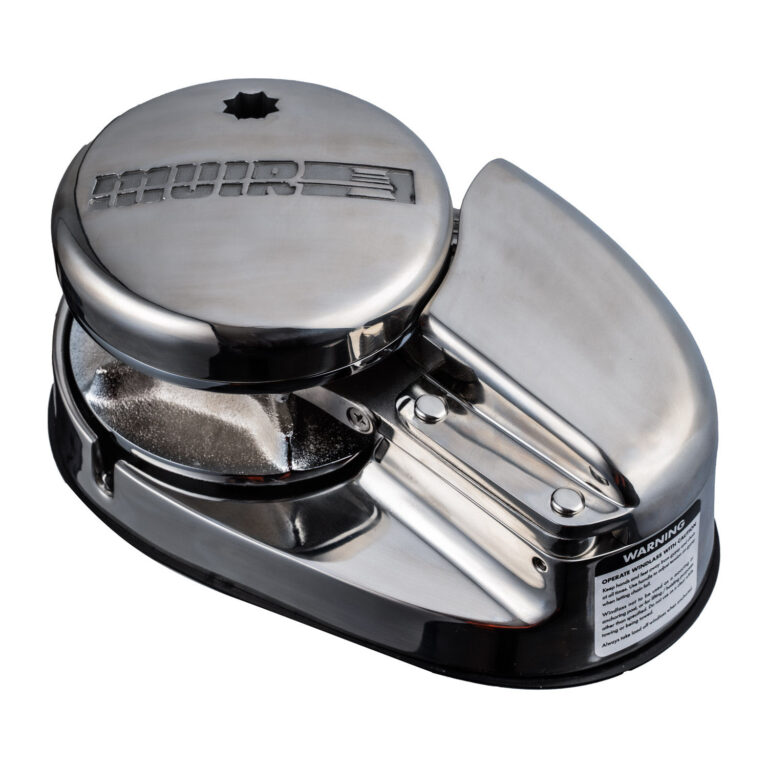

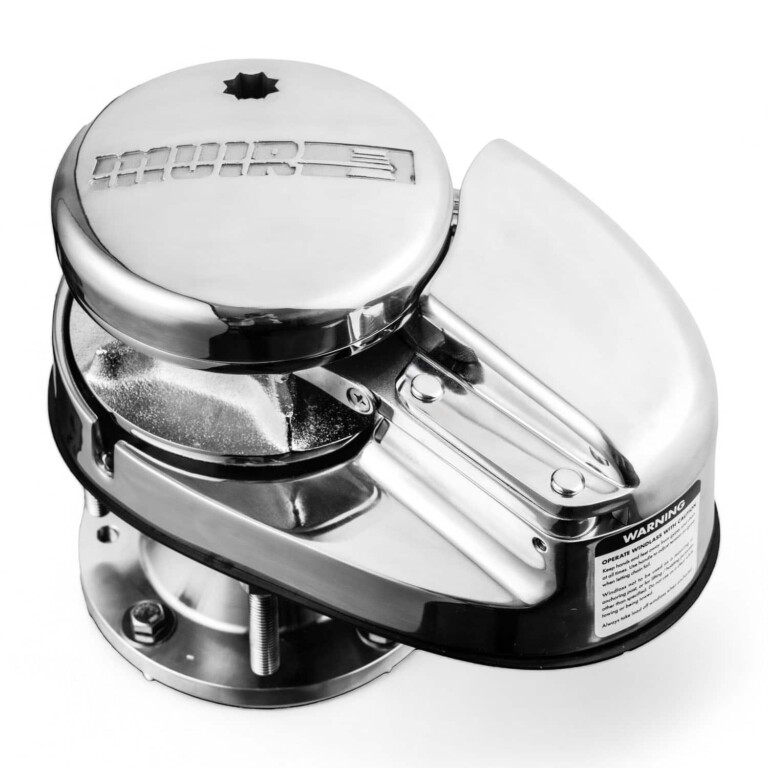

VR
VRC
Included in the package
Circuit Breaker & Mounting Pannel
Deck Switch

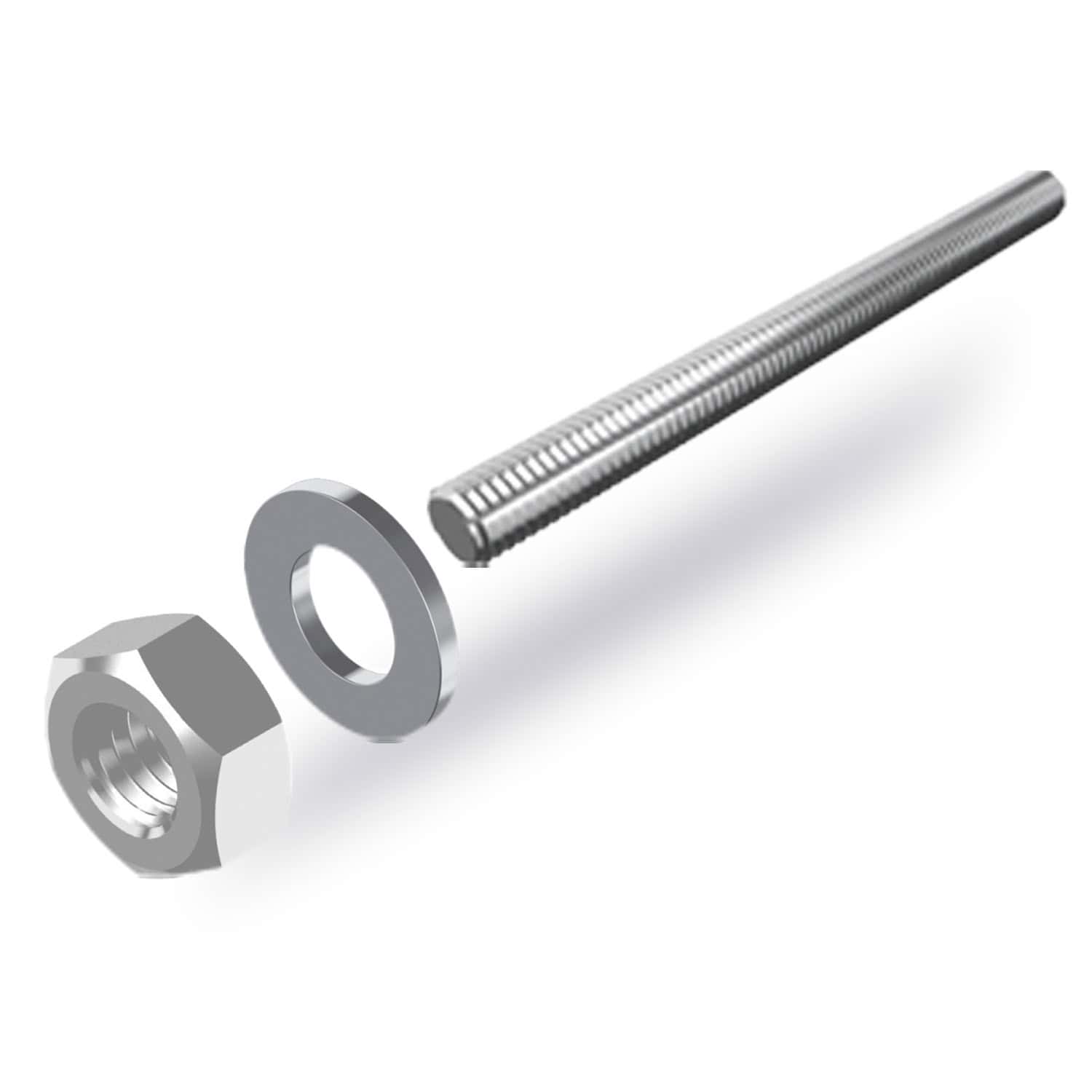

Deck mounting studs & fasteners
Clutch release handle
Installation/Operation booklet
| Name | Specifications |
|---|---|
| Recommended Vessel Length | 14-20m |
| Power Supply Options | DC 12V, DC 24V, DC 48V |
| Recommended Muir Circuit Breaker | 150A/100A (12/24V) |
| Motor (Watts) | 1500Watts |
| Amps Workload | 150A/70A (12/24V) |
| Hydraulic Pressure | 10MPa |
| Hydraulic Flow | 20L/min |
| Max Load | 1200Kg |
| Workload | 400Kg |
| Max Line Speed | 28m/min |
| Compatible Chain Sizes | 8 mm (5/16") - 13 mm (1/2") |
| Compatible Rope/Chain Combo | 8mm (5/16"), 10mm (3/8"), 13mm (3/8") |
| Compatible Rope Sizes | 14 mm (9/16″) – 20 mm (3/4″) |
| Auto Anchor Compatible | Yes |
| Net Weight DC | 40Kg |
| Net Weight Hydraulic | 44Kg |
| Manual Operation | MORS (opt) |
Download
