Storm VR/VRC4000
Unsure of your chain?
Use our Calculation Tool to determine your chain size and standard, ensuring a perfect fit with your Muir Windlass.

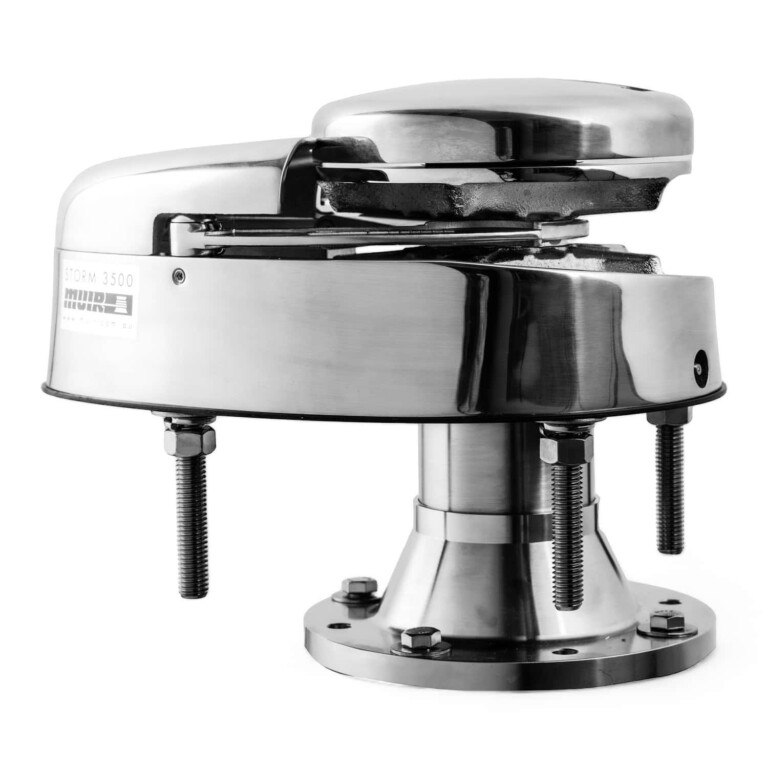

Chain Selection GuideMuir Storm VR/VRC4000 Vertical Windlass.
Muir Storm VR/VRC4000 vertical windlass for vessels 18–25m (58 – 82ft). 2200W motor, 2100kg max load, polished stainless steel build. DC, AC and hydraulic options.
Features
- Polished stainless steel components
- High tensile stainless steel shaft
- Heavy duty, marine grade, dual-direction motor

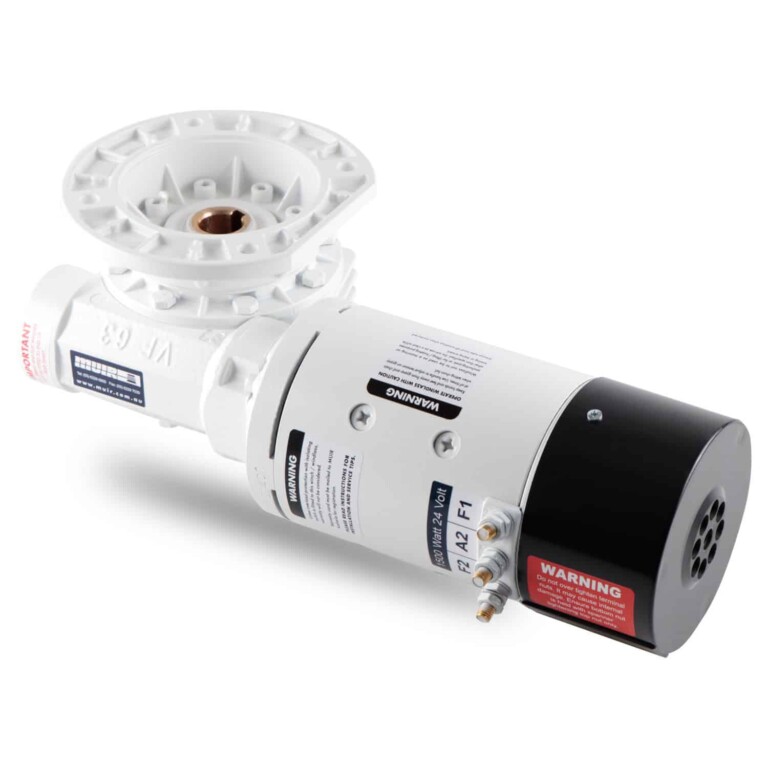

- Superior, heavy-duty Oil bath worm drive gearbox
- Rope Chain Management System (RCMS)
- Quick-Access Chain Pipe Cover
- Self-lubricating bush
- Capstan models feature a knurled grip
- Independent gypsy and capstan operation
- Suits multiple global chain standards
- Deck Isolation Pad Included
Drawings
Top View
VR
VRC
Included in the package

Circuit Breaker & Mounting Pannel

Deck Switch

Deck mounting studs & fasteners

Clutch release handle

Installation/Operation booklet
| Name | Specifications |
|---|---|
| Recommended Vessel Length(m) | 18-25m |
| Recommended Vessel Length(ft) | 58 - 82ft |
| Power Supply Options | DC 24V, DC 48V |
| Recommended Muir Circuit Breaker | 150A/100A (12/24V) |
| Motor (Watts) | 2200Watts |
| Amps Workload | 110A (12V) |
| Hydraulic Pressure | 199MPa |
| Hydraulic Flow | 22L/min |
| Max Load | 2100Kg |
| Workload | 700Kg |
| Max Line Speed | 17m/min |
| Compatible Rope/Chain Combo | 8mm (5/16"), 10mm (3/8"), 13mm (3/8") |
| Auto Anchor Compatible | Yes |
| Net Weight DC | 54Kg |
| Net Weight Hydraulic | 50Kg |
| Manual Operation | MORS (opt) |
