Storm VR/VRC1250

Windlasses / Vertical Windlasses / Storm VR/VRC1250

Unsure of your chain, check it here.

Chain Selection Guide

Designed for vessels up to 13m (43ft), and in low profile and capstan configurations, they offer fast powered retrieval, smooth rope chain combination operation, reduced installation time, style and unbeatable reliability. Manufactured from polished stainless steel components the Storm Windlass will weather the harshest of conditions.

Storm Windlasses represent the pinnacle of reliability and performance and are packed with the features and quality you have come to expect from Muir. Designed on the principals of the award-winning Atlantic series with all its features and more.

Drawings

Top View

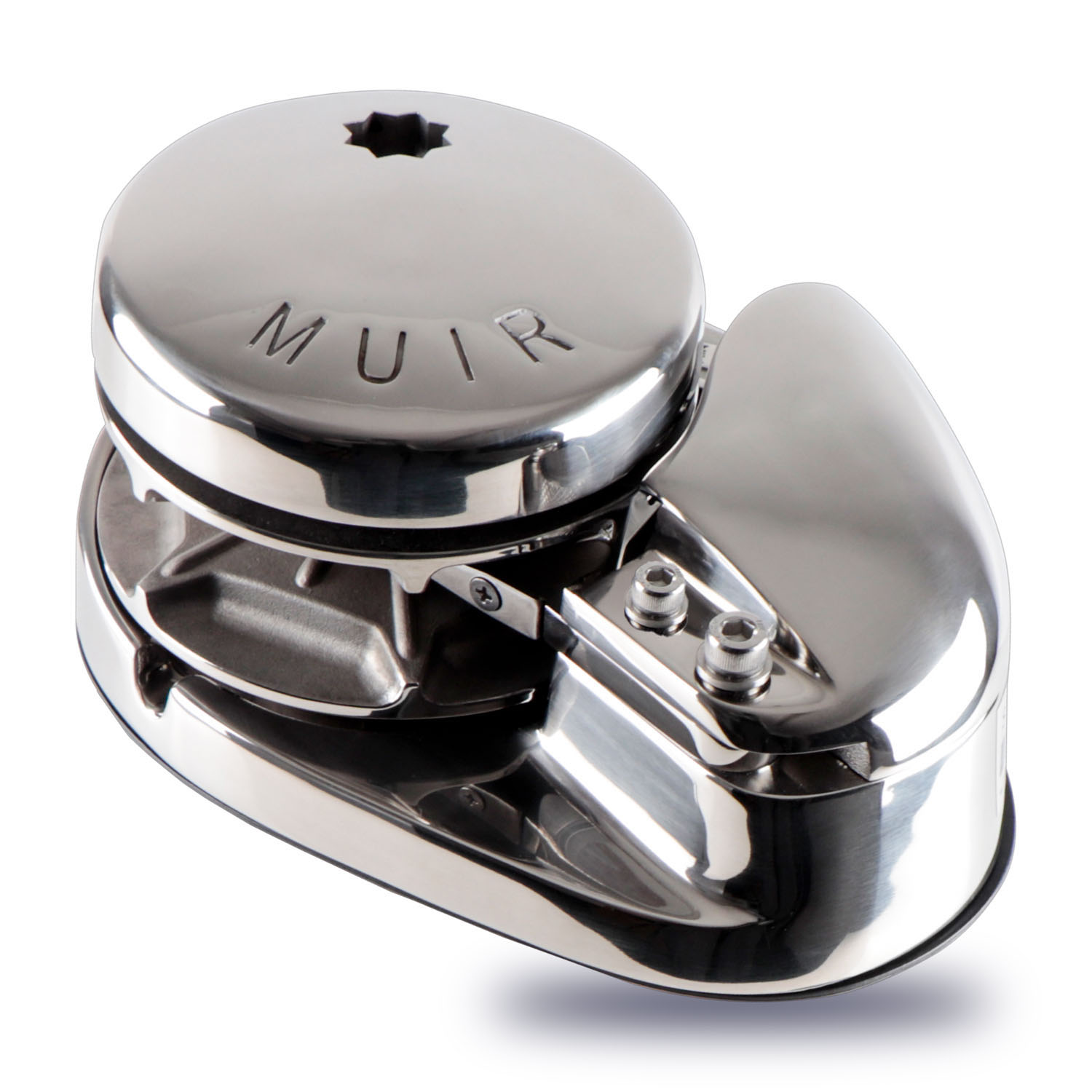

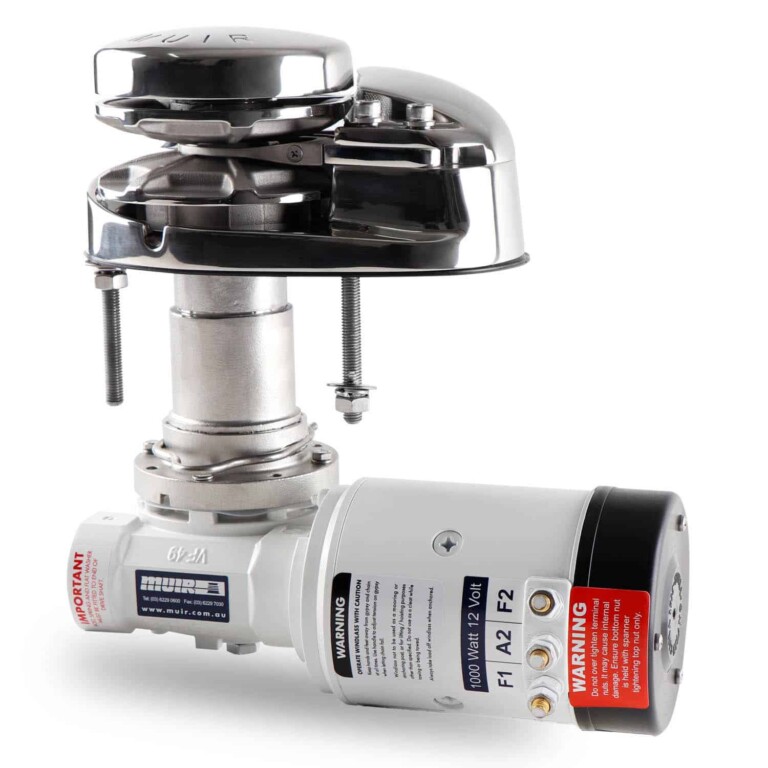

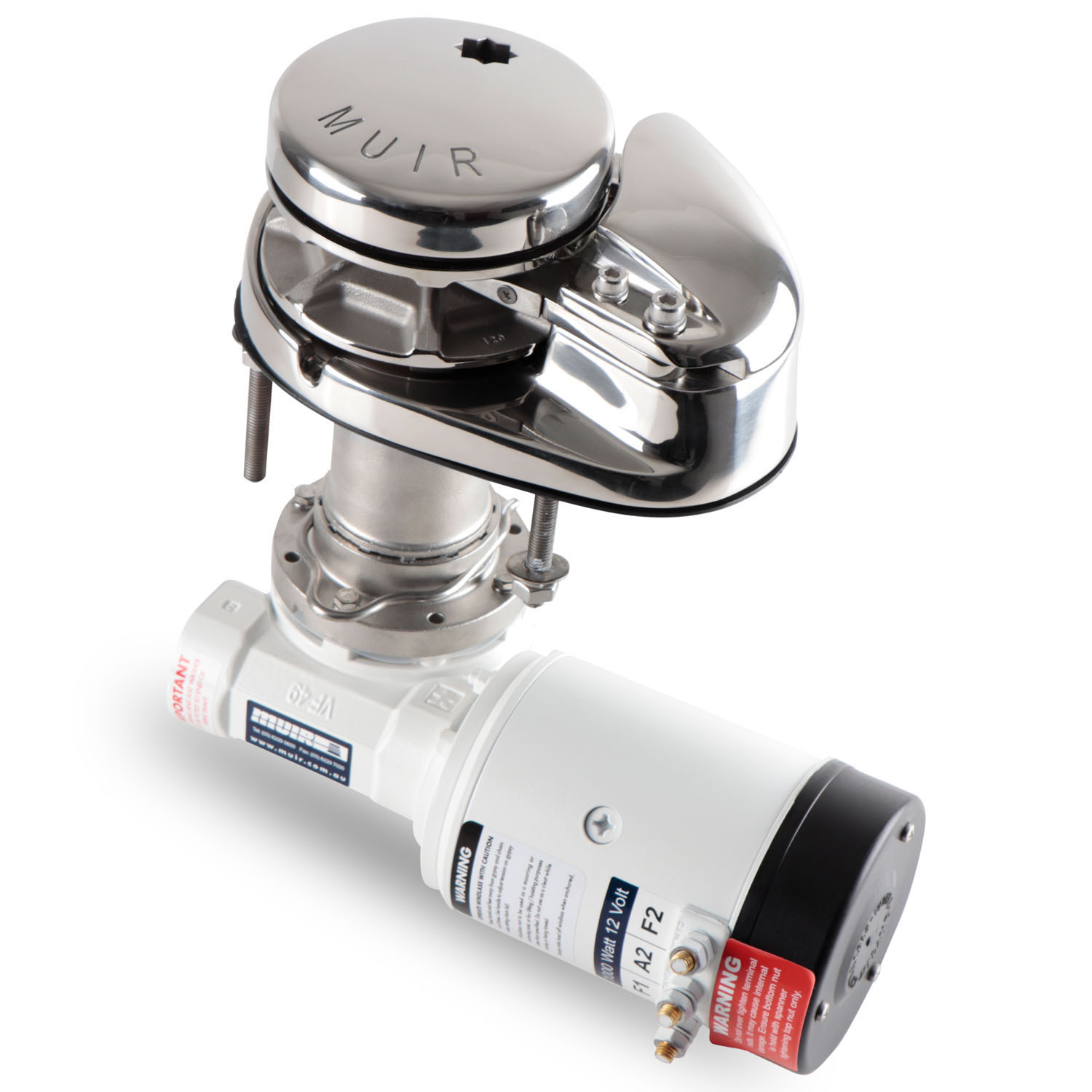

VR

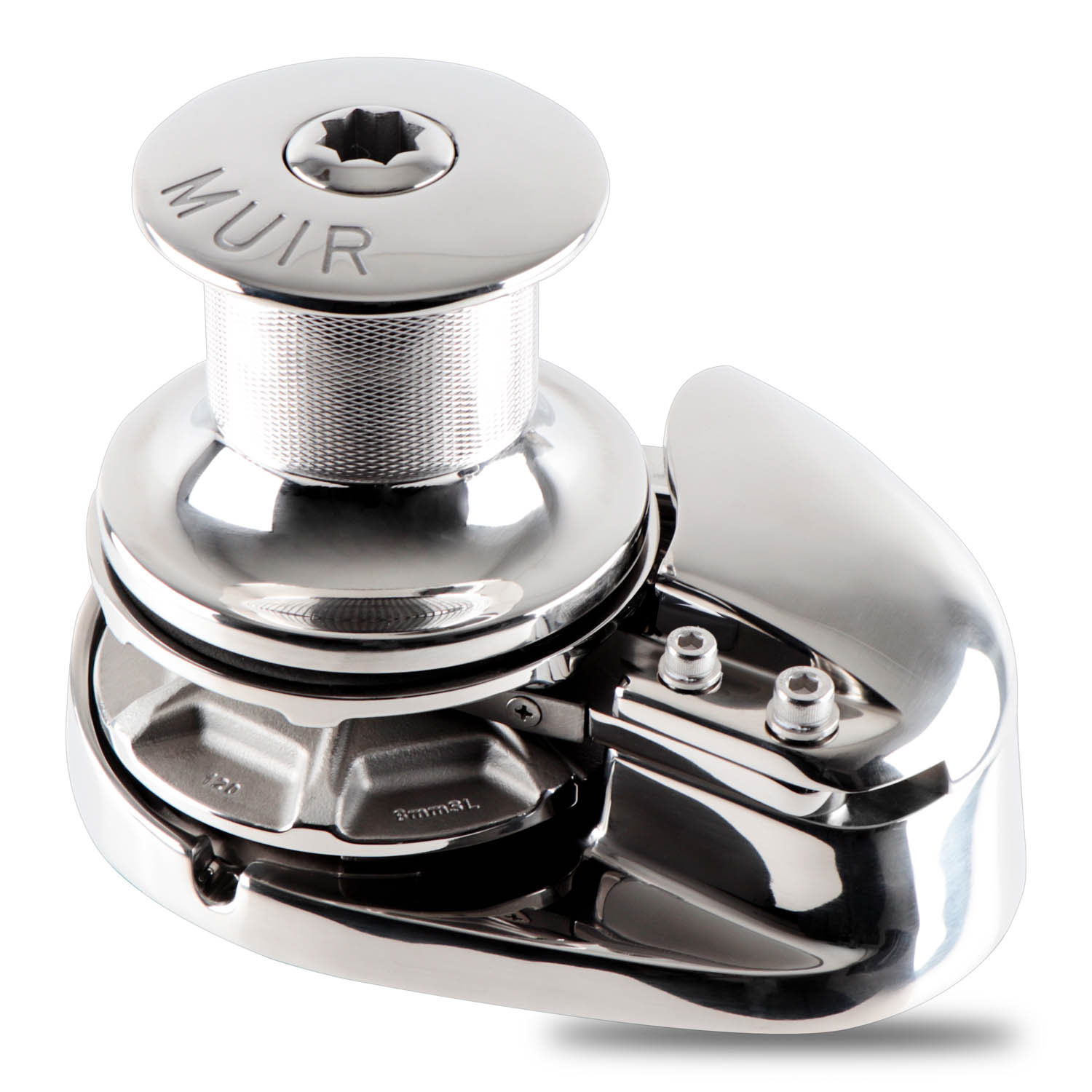

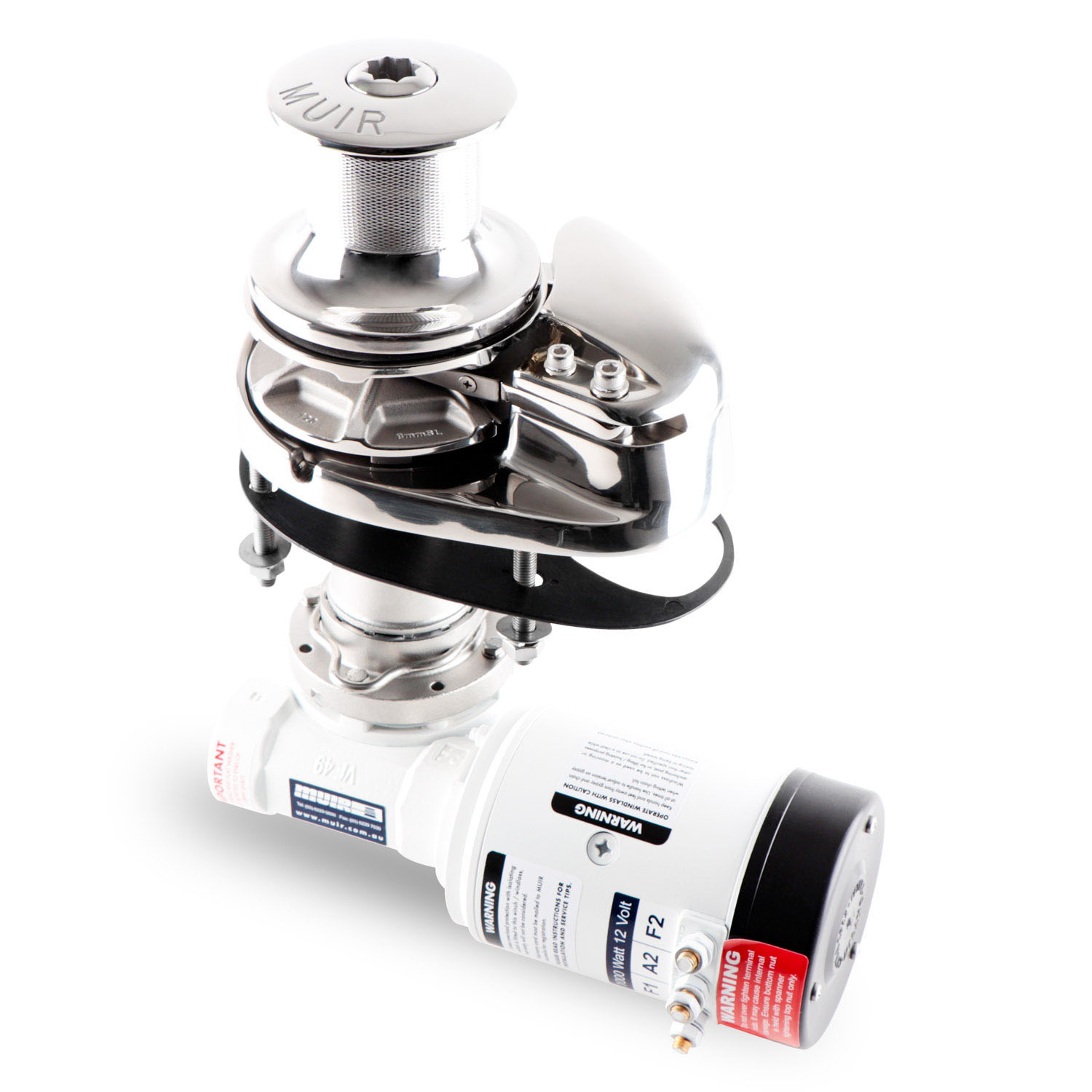

VRC

Features

    • Polished stainless steel components
    • High tensile stainless steel shaft
    • Heavy duty, marine grade, dual-direction motor
    • Superior, heavy-duty Oil bath worm drive gearbox
    • Rope Chain Management System (RCMS) fitted
    • Integrated quick release with chain pipe cover
    • Self-lubricating bush
    • Capstan models feature a knurled grip
    • Independent gypsy and capstan operation
    • Suits multiple global chain standards
    • Deck isolation pad

    Included in the package

    Circuit Breaker & Mounting Pannel

    Deck Switch

    Quick fit adaptor

    Deck mounting studs & fasteners

    Clutch release handle

    Installation/Operation booklet

    Manual Operation System (MOS)

      Technical Specifications
      NameSpecifications
      Recommended Vessel Length10-13m
      Power Supply OptionsDC 12V, DC 24V, DC 48V
      Recommended Muir Circuit Breaker

      100A/80A (12/24V)

      Motor (Watts)1200Watts
      Amps Workload125A/60A (12/24V)
      Hydraulic Pressure8MPa
      Hydraulic Flow15L/min
      Max Load621Kg
      Workload207Kg
      Max Line Speed30m/min
      Compatible Chain Sizes6 mm (1/4“), 8 mm (5/16“), 10 mm (3/8”)
      Compatible Rope/Chain Combo6mm (1/4"), 8mm (5/16"), 10mm (3/8")
      Compatible Rope Sizes

      12mm (1/2″), 14mm (9/16″), 16mm (5/8″)

      Auto Anchor CompatibleYes
      Net Weight DC20Kg
      Manual OperationMOS (std on most gypsy sizes)
