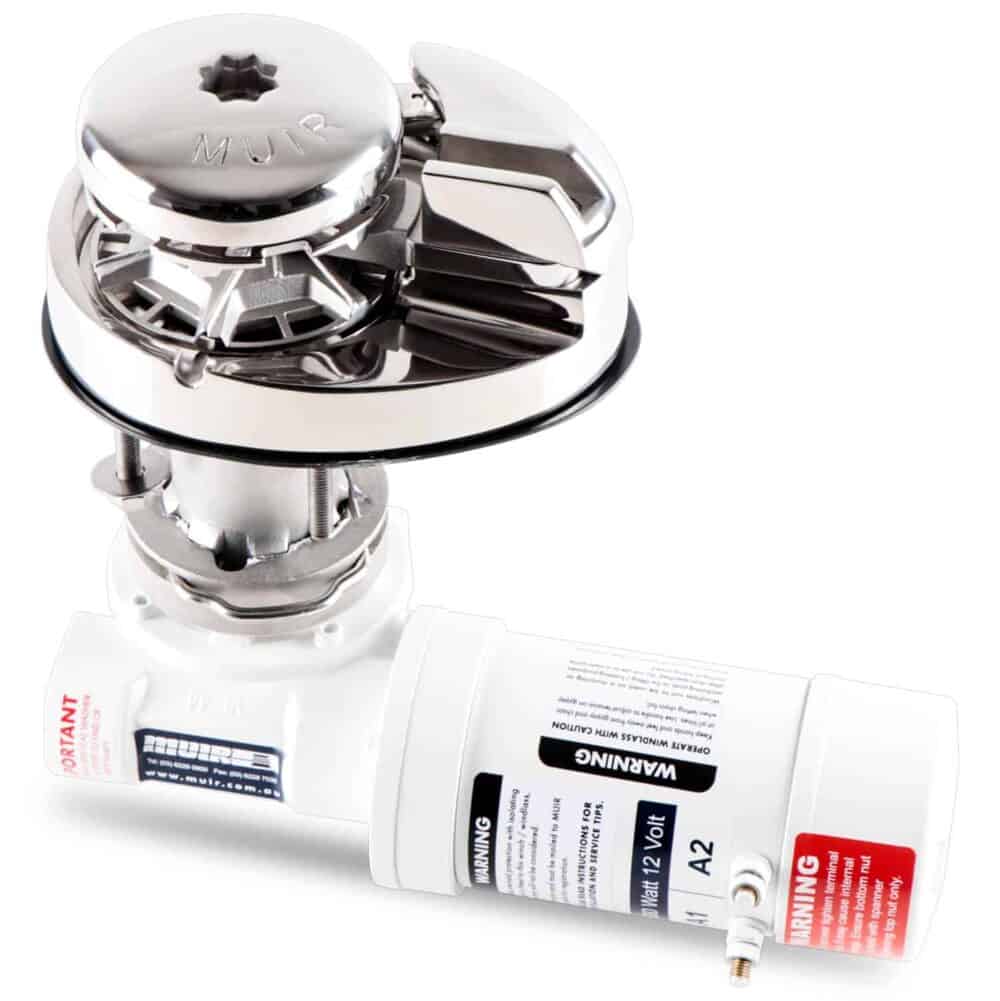

Storm VR600
Unsure of your chain?
Use our Calculation Tool to determine your chain size and standard, ensuring a perfect fit with your Muir Windlass.
Chain Selection GuideStorm VR600 Windlass | Muir Australia
Storm VR600 provides the strength of conventional vertical windlasses but with advanced and innovative concepts. Recognized for their sleek curved lines, Storms are available in low profile (VR) or capstan (VRC) configurations. This provides the highest level of security and safety, whilst enhancing the foredeck of the most luxurious vessel.
Features
- Polished stainless steel components
- High tensile stainless steel shaft
- Heavy duty, marine grade, dual-direction motor
- Superior, heavy-duty Oil bath worm drive gearbox
- Rope Chain Management System (RCMS)
- Quick-Access Chain Pipe Cover
- Self-lubricating bush
- Capstan models feature a knurled grip
- Independent gypsy and capstan operation
- Suits multiple global chain standards
Drawings
Top View
VR
VRC
Included in the package
Circuit Breaker & Mounting Pannel
Rocker Switch
Deck mounting studs & fasteners
Clutch release handle small
Reversing Solenoid kit
Installation/Operation booklet
Related Accessories
| Name | Specifications |
|---|---|
| Recommended Vessel Length(m) | 5-9m |
| Recommended Vessel Length(ft) | 16 - 29ft |
| Power Supply Options | DC 12V, DC 24V, DC 48V |
| Recommended Muir Circuit Breaker | 80A (12V) |
| Motor (Watts) | 550Watts |
| Amps Workload | 75A/40A (12/24V) |
| Max Load | 369Kg |
| Workload | 124Kg |
| Max Line Speed | 25m/min |
| Compatible Chain Sizes | 6 mm (1/4") - 7 mm (7/25") |
| Compatible Rope Sizes | 6 mm (1/4″) – 12 mm (1/2″) |
| Auto Anchor Compatible | Yes |
| Net Weight DC | 12Kg |
| Manual Operation | N/A |
