Folding Stock Anchor
Description

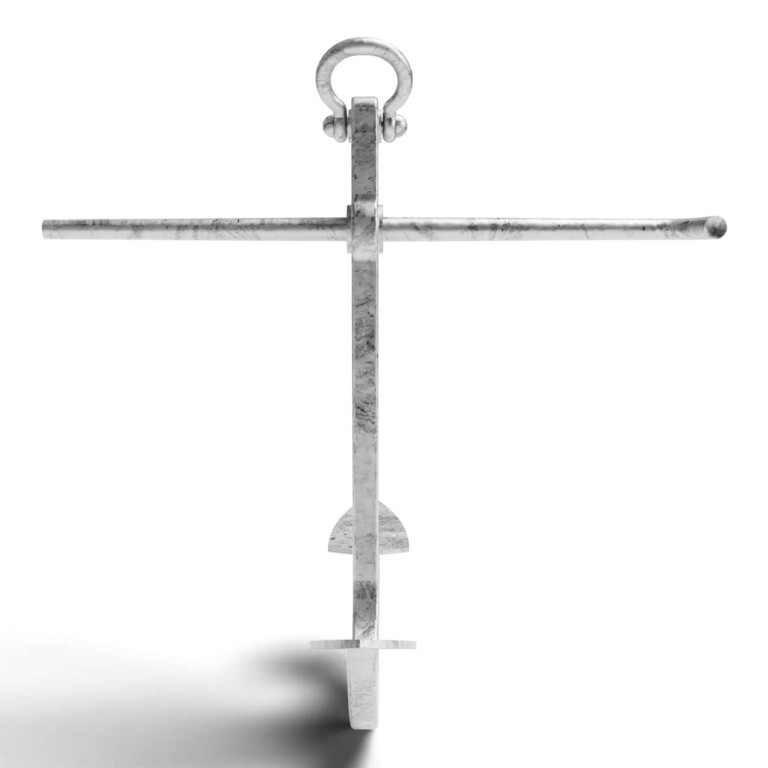

The Folding Stock Anchor, known as Admiralty, features a folding stock (cross bar) and folding flukes. The stock can be locked open by inserting the galvanized plate into the slot, while the flukes can be locked open by inserting the galvanized pin.The pin and plate are secured by a chain to prevent accidental loss
Surface: hot-dip galvanized
Size Chart

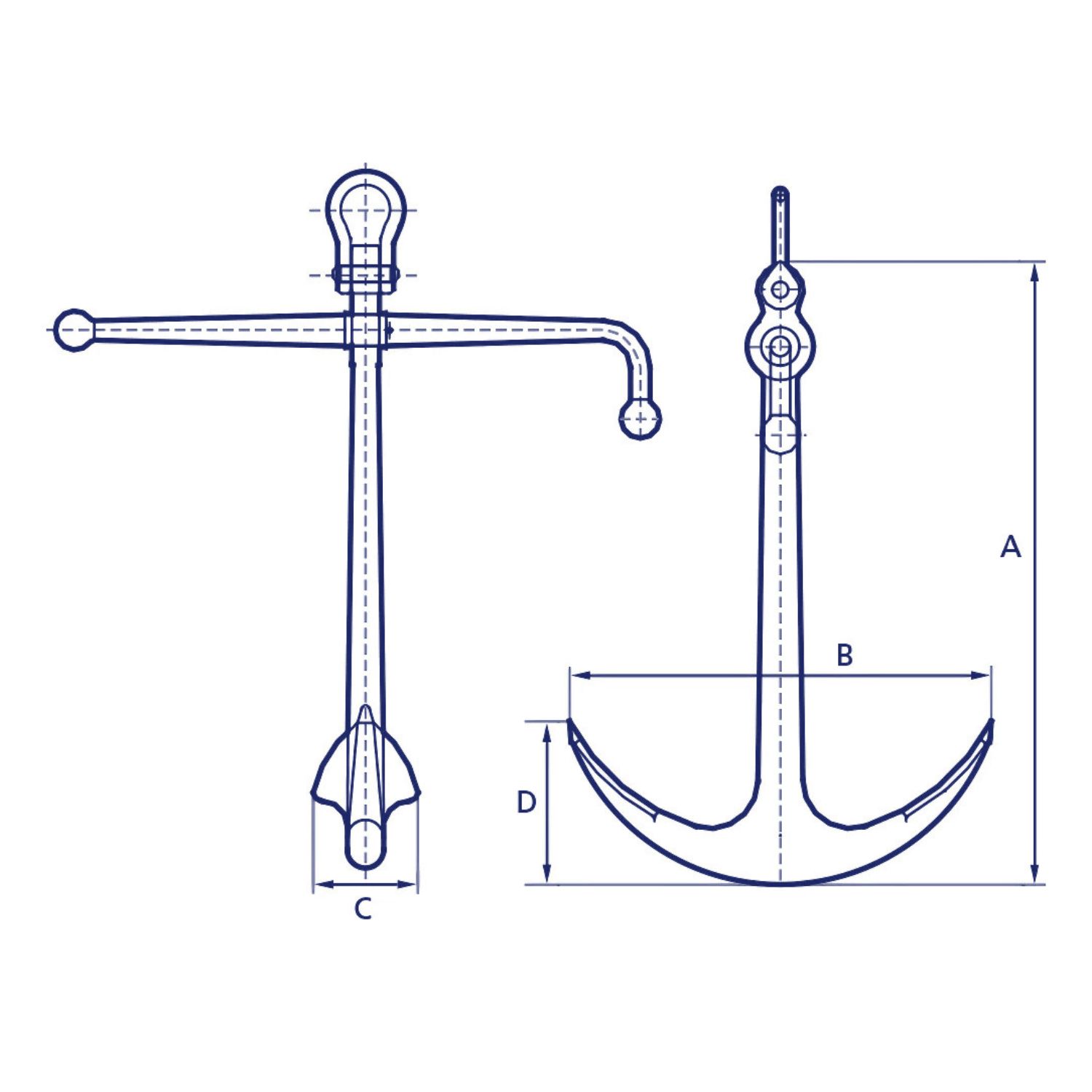

Main Diagram
| Weight | A | B | C | D |
| Kgs | mm | mm | mm | mm |
| 10 | 650 | 400 | 100 | 150 |
| 25 | 890 | 550 | 130 | 200 |
| 50 | 960 | 635 | 185 | 230 |
| 75 | 1105 | 710 | 210 | 266 |
| 100 | 1215 | 780 | 230 | 293 |
| 150 | 1395 | 900 | 265 | 336 |
| 200 | 1535 | 990 | 290 | 370 |
| 300 | 1755 | 1105 | 330 | 423 |
| 500 | 2080 | 1335 | 390 | 502 |
| 700 | 2330 | 1500 | 440 | 560 |
| 1000 | 2620 | 1685 | 495 | 633 |
| 2000 | 3300 | 2140 | 625 | 797 |
| 3000 | 3780 | 715 | 715 | 912 |
