High-strength stainless steel anchor point for engineering safety and heavy-duty applications.

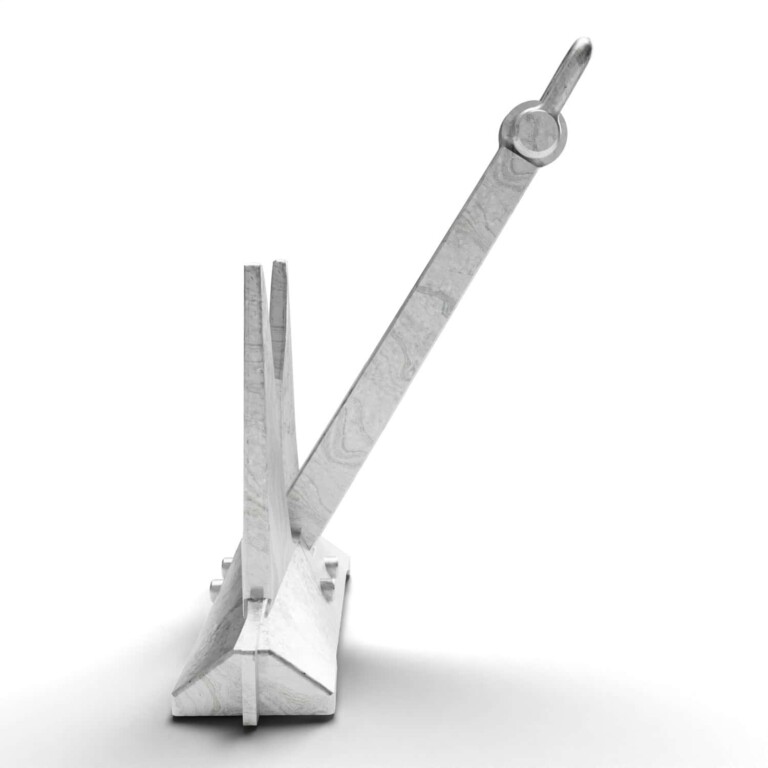

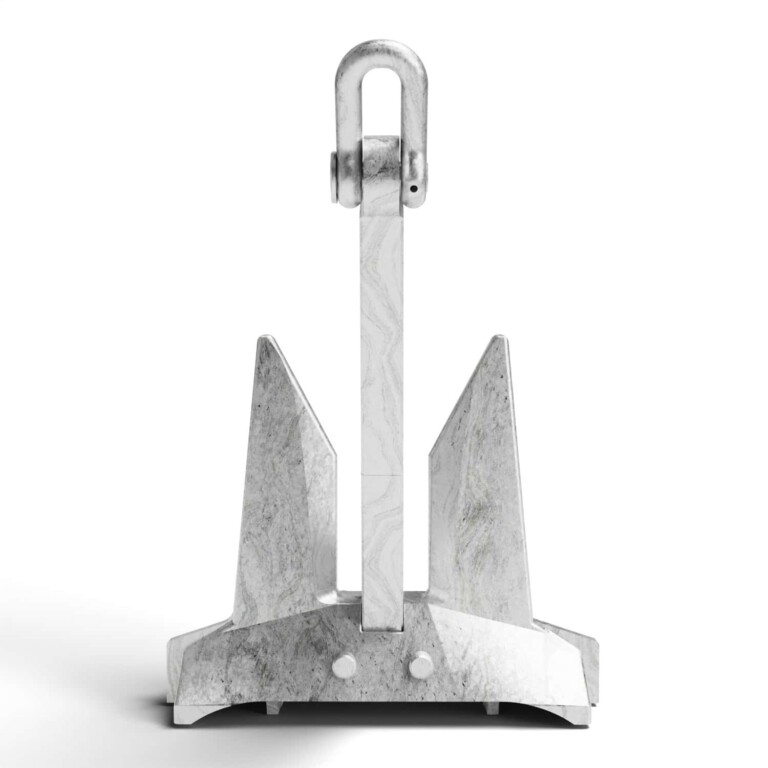

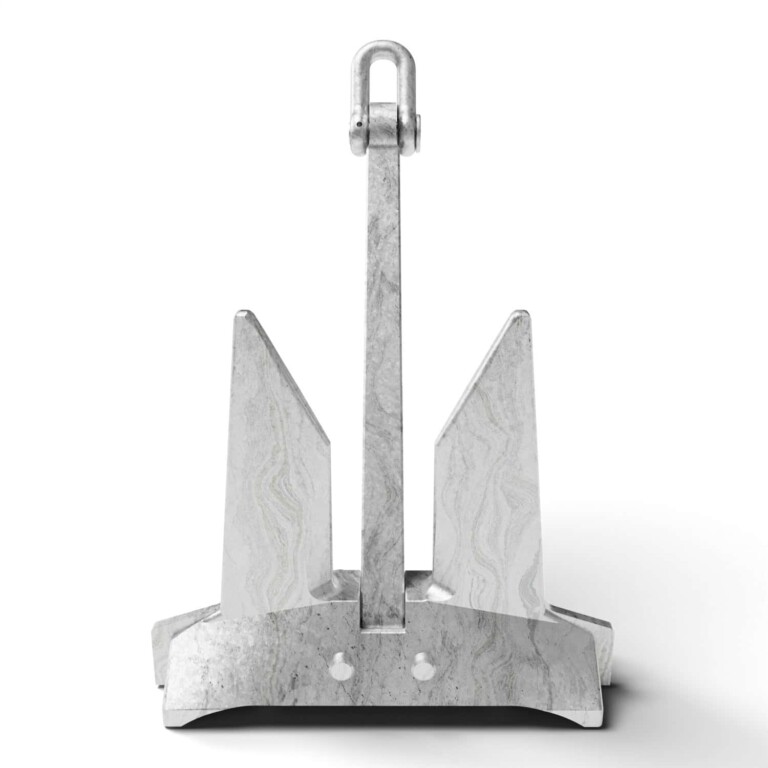

AC-14 Anchor

Inquire Now

Description

The AC-14 anchor is a High Holding Power anchor. Its design provides excellent weight to performance ratios. The benefit of the AC-14 High Holding Power anchor is its 25% weight reduction compared to conventional anchors. This means more space and less weight on board. We supply both the standard version and fully balanced type. Our expert team can help you to select the right AC-14 anchor for your purpose.

Surface: black tarred painting, hot-dip galvanized, Dacromet

Certificate available for ABS, BV, LRS, DNV, IRS, RINA, RS, CCS, KR, NK

Size Chart

Main Diagram

Weight	A	B	C	D	E	F
Kgs	mm	mm	mm	mm	mm	mm
30	491	440	136	85	299	236
45	590	529	164	107	359	283
75	677	605	188	122	411	324
94	718	643	199	130	437	344
112	745	666	207	135	452	357
135	821	737	228	143	500	394
180	904	811	251	157	550	434
225	974	874	270	169	593	468
270	1035	929	287	180	630	497
315	1090	978	302	189	663	524
360	1139	1022	316	198	694	547
430	1194	1071	331	206	727	574
495	1251	1122	347	216	762	602
585	1360	1221	378	236	828	654
675	1398	1254	387	242	851	672
765	1483	1304	404	264	885	698
855	1520	1363	423	267	925	729
970	1590	1425	440	275	968	764
1080	1631	1462	451	282	993	784
1195	1660	1490	465	287	1011	798
1305	1761	1580	488	305	1072	846
1440	1795	1610	497	311	1093	862
