SPEK Anchor

Inquire Now

Description

The Spek anchor is a type of stockless anchor that has been improved to have a lower center of gravity compared to the hall anchor. The core of the anchor head is positioned at the centerline of the pin, extending towards the bottom. The structure of the Spek anchor is characterized by an anchor crown plate and reinforcing ribs on its crown, enabling easy grounding and enhanced stability.

Its intelligent design makes it perfectly suited for fitting into an anchor pocket, while ensuring that its flukes remain naturally oriented upwards and promptly overturn upon contact with hull plates to prevent damage to shell plating.

Surface: black tarred painting, hot-dip galvanized, Dacromet

Certificate available for ABS, BV, LRS, DNV, IRS, RINA, RS, CCS, KR, NK

Size Chart

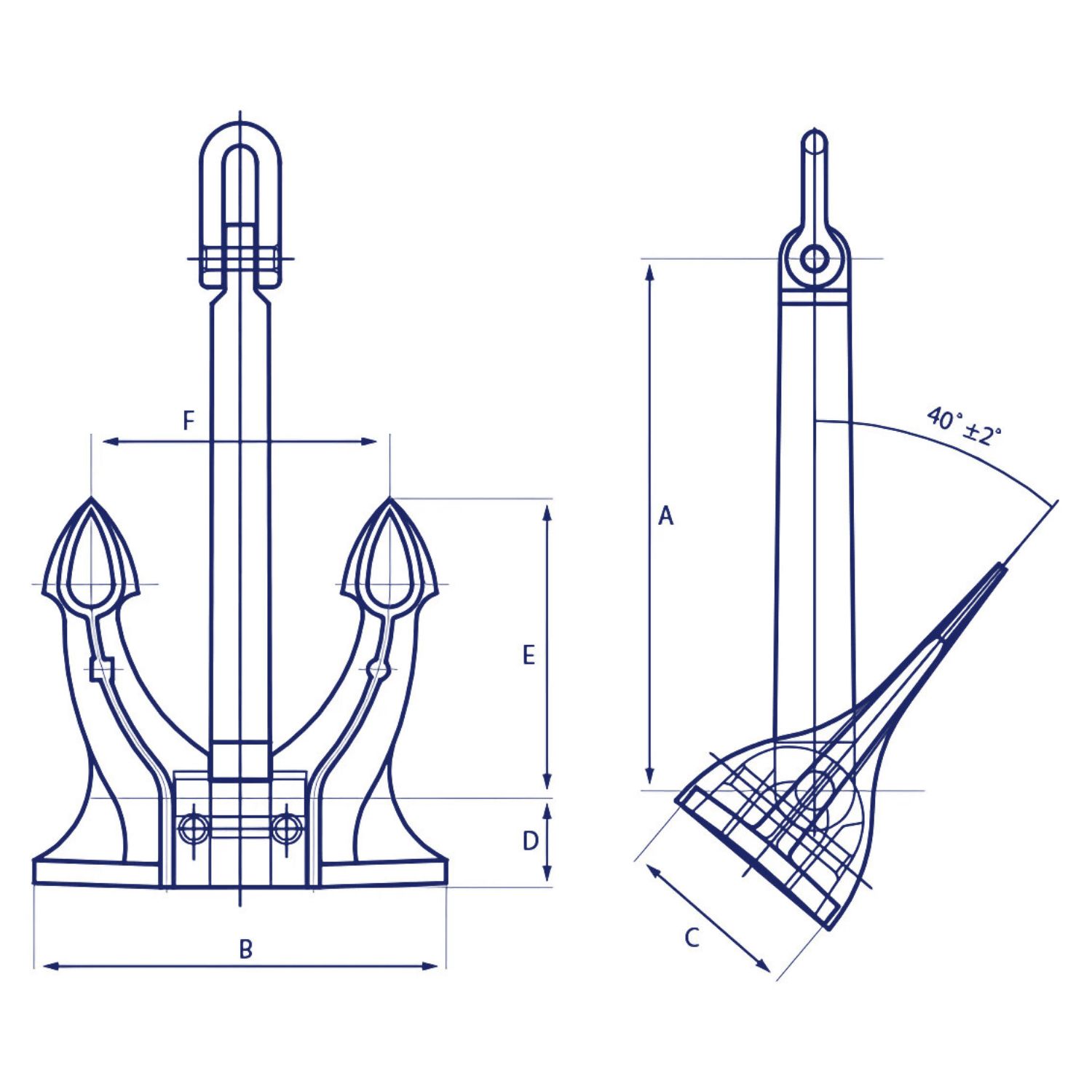

Main Diagram

Weight	A	B	C	D	E	F
Kgs	mm	mm	mm	mm	mm	mm
50	537	411	185	89	298	298
75	638	489	213	106	355	355
100	703	539	234	117	390	390
140	786	603	262	131	437	437
180	855	655	285	142	475	475
240	900	690	300	150	500	500
300	990	760	330	166	550	550
360	1080	828	360	180	600	600
420	1080	828	360	180	600	600
480	1170	900	390	196	650	650
570	1170	900	390	196	650	650
660	1260	962	420	210	700	700
780	1350	1032	450	225	750	750
900	1440	1100	480	240	800	800
1020	1530	1170	510	252	850	850
1140	1620	1240	540	268	900	900
1290	1710	1240	540	268	900	900
1440	1710	1300	570	279	950	950
1590	1710	1300	570	279	950	950
1740	1800	1378	600	300	1000	1000
1920	1890	1454	630	312	1050	1050
2100	1890	1454	630	312	1050	1050
