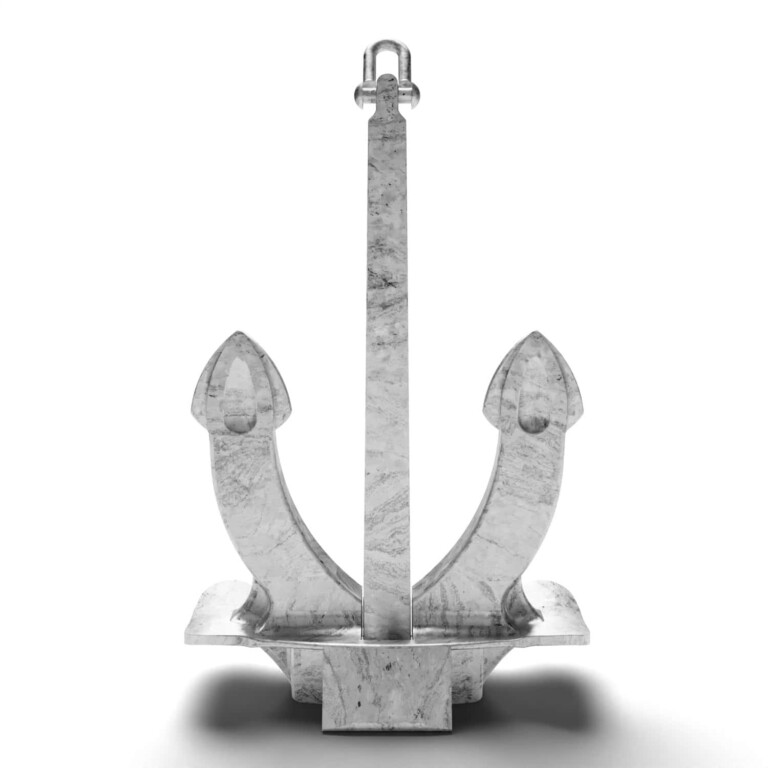

Hall Anchor

Inquire Now

Description

The Hall anchor is a widely used conventional stockless anchor commonly found in the commercial shipping industry. Its traditional design and proven performance make it an appealing choice for ship anchoring. The Hall anchor is typically stowed against the shell or frog eye

Surface: black tarred painting, hot-dip galvanized, Dacromet

Certificate available for ABS, BV, LRS, DNV, IRS, RINA, RS, CCS, KR, NK

Size Chart

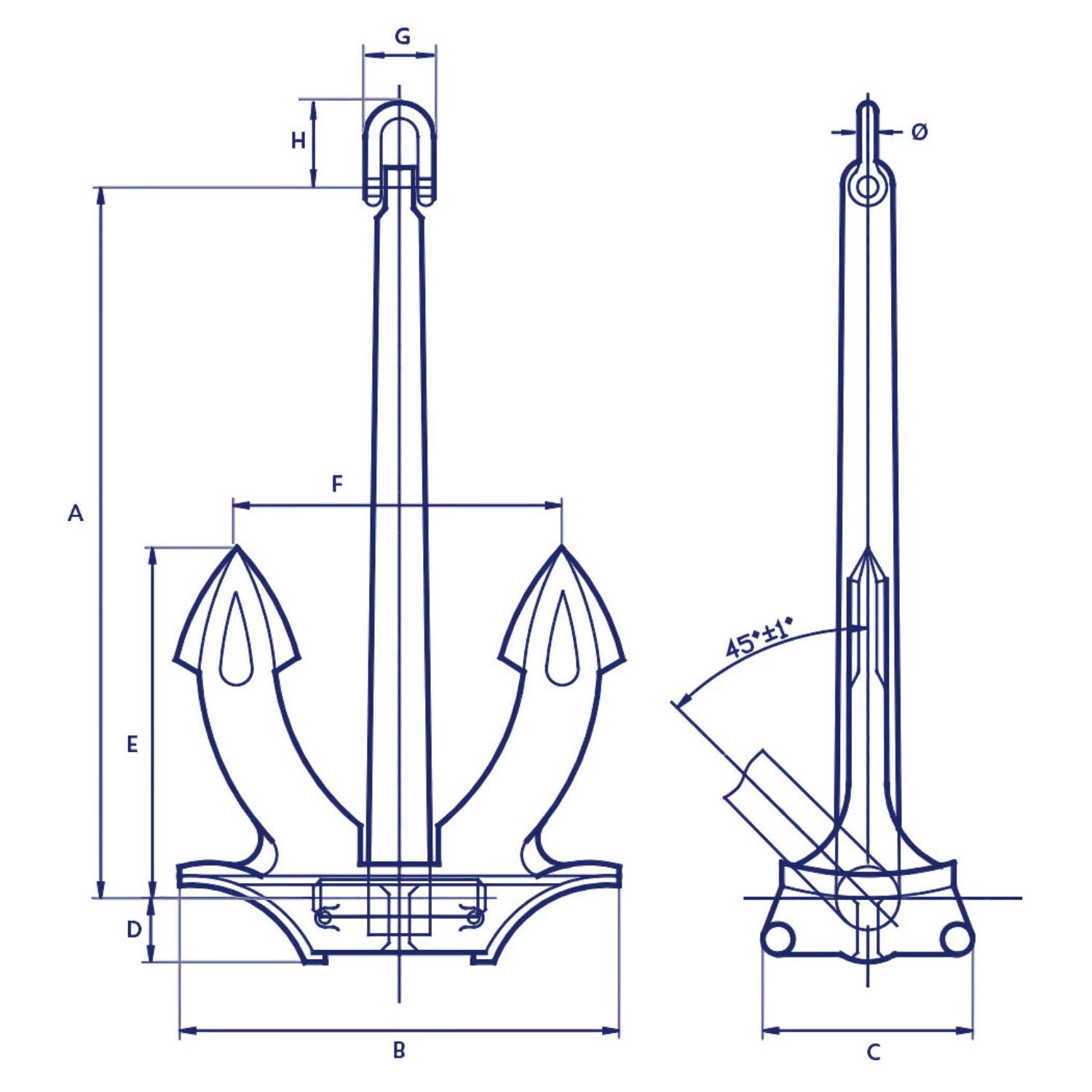

Main Diagram

Weight	A	B	C	D	E	F	G	H	Φ
Kgs	mm	mm	mm	mm	mm	mm	mm	mm	mm
150	866	670	308	103	470	470	100	130	28
180	952	735	339	114	518	518	113	145	32
240	1019	784	361	121	552	552	125	160	36
300	1095	844	388	130	595	595	139	175	40
360	1160	898	412	138	630	630	139	175	40
420	1255	967	444	149	675	675	152	192	45
480	1300	1000	460	154	700	700	167	215	48
570	1380	1060	490	164	745	745	167	215	48
660	1422	1096	506	169	769	769	175	235	50
780	1506	1160	535	178	813	813	175	235	50
900	1580	1220	560	188	855	855	183	255	50
1020	1645	1268	584	195	891	891	183	255	50
1140	1705	1319	605	203	926	926	183	255	50
1290	1778	1374	630	211	965	965	216	280	62
1440	1844	1430	655	219	1001	1001	216	280	62
1590	1906	1475	677	226	1035	1035	216	280	62
1740	1966	1517	698	234	1068	1068	238	310	68
1920	2031	1568	722	241	1104	1104	238	310	68
2100	2093	1614	743	249	1136	1136	238	310	68
2280	2150	1657	763	255	1165	1165	260	340	74
