N-Type Pool Anchor

Inquire Now

Description

N-Type Pool Anchor

The N-type pool anchor is a stockless high holding power anchor commonly used as a bow anchor during sailing. It boasts a weight reduction of up to 25% compared to standard anchors. Specifically designed for modern ships, the N-type HHP anchor fits seamlessly into small anchor pockets and features hollow flukes welded from two plates, ensuring exceptional anchoring performance in diverse conditions. This construction grants the anchor superior resistance against bending forces, making it ideal for large yachts, cruise vessels, and container ships

Surface: black tarred painting, hot-dip galvanized, Dacromet

Certificate available for ABS, BV, LRS, DNV, IRS, RINA, RS, CCS, KR, NK

Size Chart

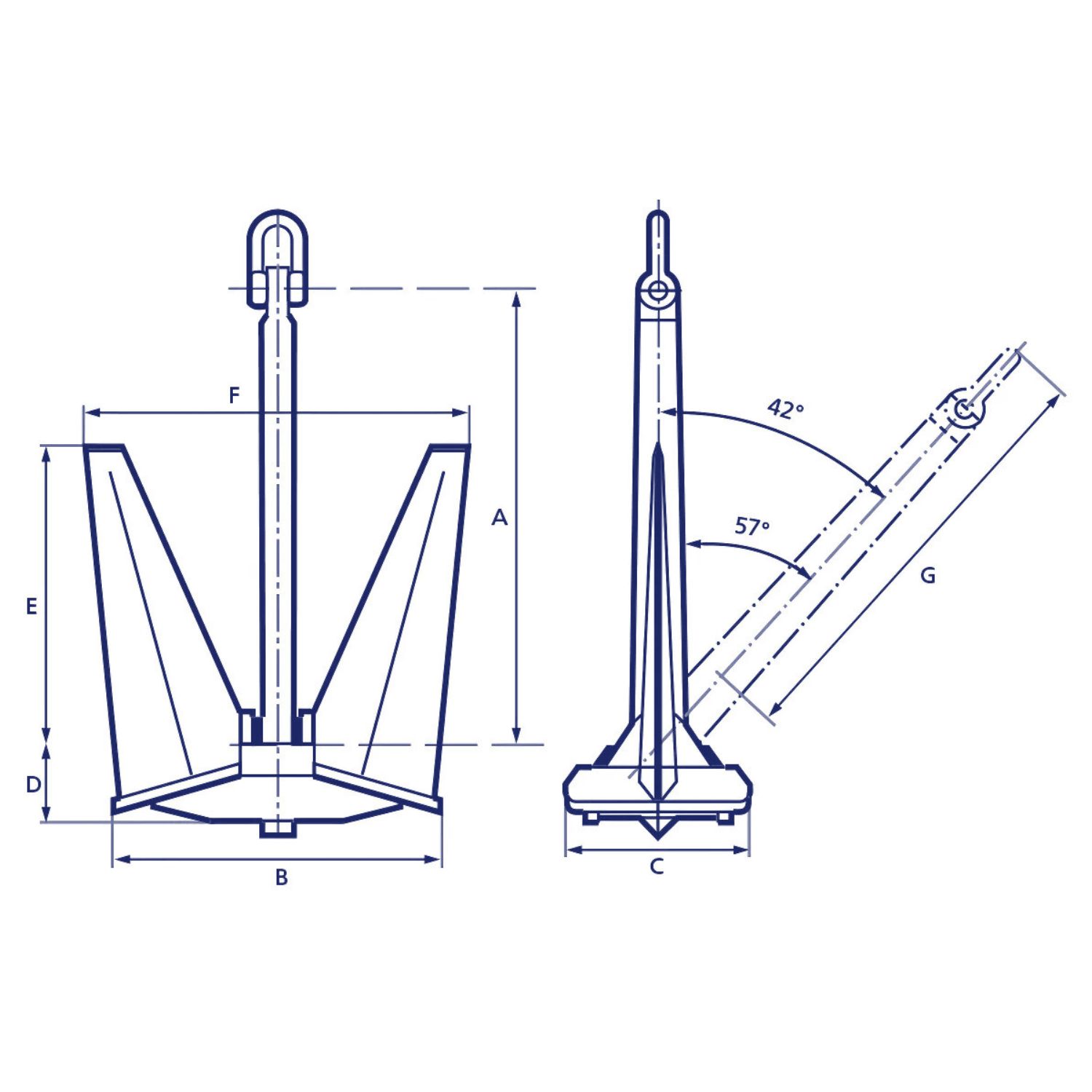

Main Diagram

Weight	A	B	C	D	E	F
Kgs	mm	mm	mm	mm	mm	mm
180	905	650	370	150	590	765
225	1040	745	425	175	680	880
270	1090	780	450	180	715	925
315	1140	820	470	190	748	965
360	1190	855	490	195	780	1005
430	1270	910	520	210	830	1075
495	1305	940	535	215	855	1105
585	1410	1010	580	235	920	1195
675	1440	1035	590	240	940	1220
765	1528	1096	615	250	1000	1290
855	1550	1115	635	255	1015	1310
970	1615	1160	665	270	1055	1365
1080	1670	1200	670	275	1090	1410
1195	1636	1270	708	436	1010	1485
1305	1800	1290	740	300	1175	1525
1440	1910	1370	765	315	1250	1615
1575	1769	1385	777	472	1092	1640
1710	2015	1445	775	335	1320	1705
1845	1890	1469	819	504	1168	1729
1980	2080	1500	780	345	1370	1770
2140	1986	1543	860	530	1226	1816
