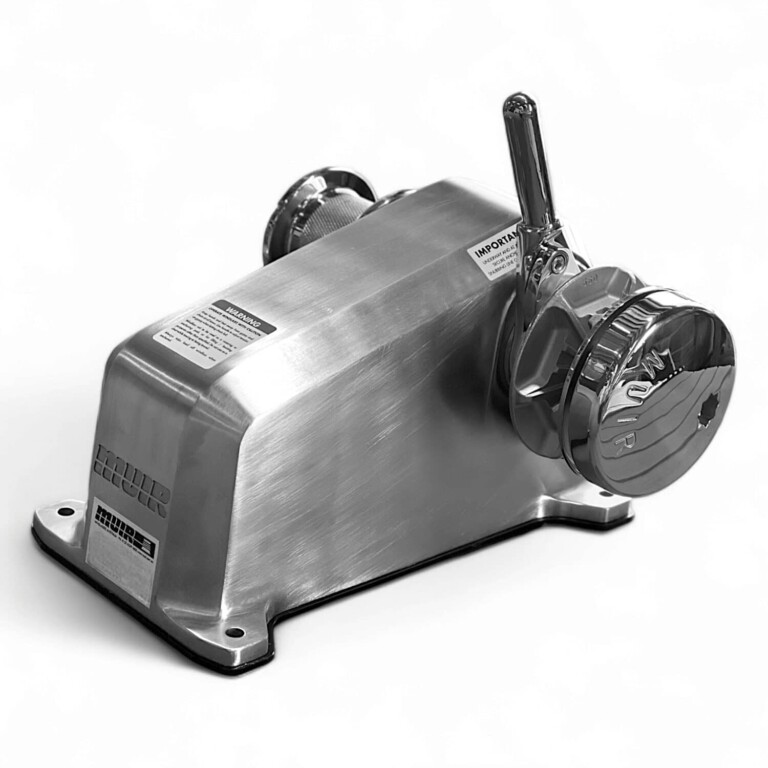

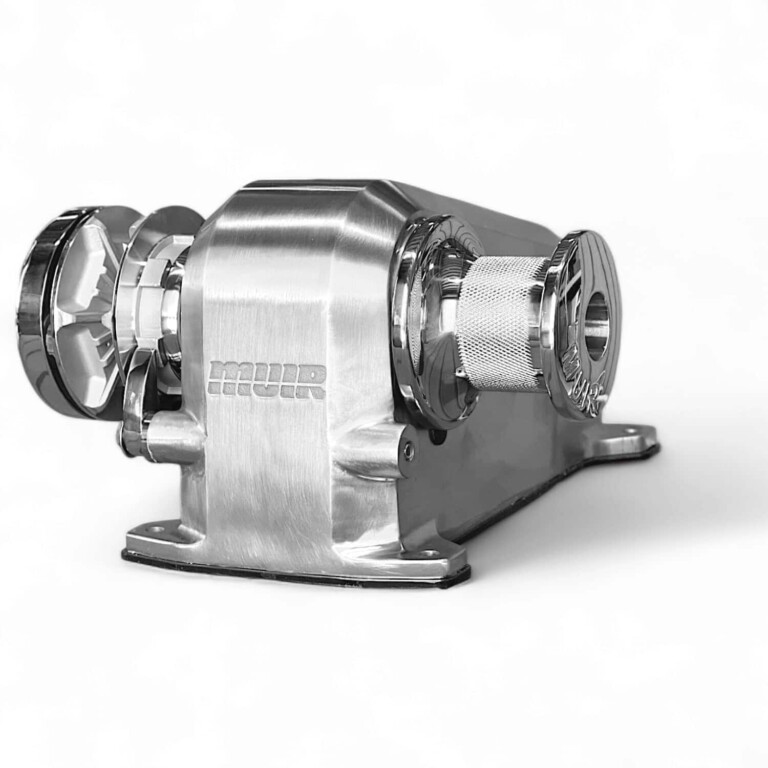

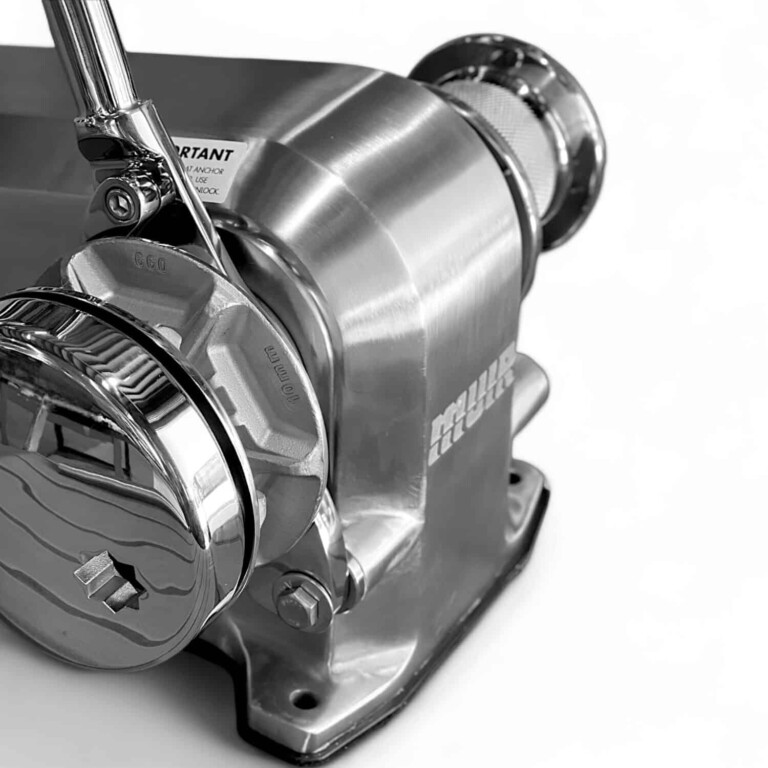

Muir HR1600 Stainless Horizontal Windlass | Vessels 12–16m.
Muir HR1600 Stainless Horizontal windlass design for vessels 12-16m (39 – 52ft). The MUIR HR1600 Stainless windlass – a high-performance horizontal anchor winch designed for strength, durability, and smooth operation. Built from premium marine-grade stainless steel, the HR1600 is ideal for medium to large vessels, offering reliable anchoring power, corrosion resistance, and long-lasting performance at sea.
Drawings
Top View
Side View
| Name | Specifications |
|---|---|
| Recommended Vessel Length(m) | 12-16m |
| Recommended Vessel Length(ft) | 39 - 52ft |
| Power Supply Options | DC 12V, DC 24V, DC 48V |
| Distance From Battery to Motor (m) | 7 (23’)m, 9 – 17 (30’ – 55’)m |
| Cable Size (mm²) | 25mm², 50mm² |
| Cable Size AWG | 1, 3 |
| Cable Diameter (mm) | 10 (3/8”)mm, 8 (5/16”)mm |
| Solenoid Included | No |
| Compatible Chain Sizes | 6 mm (1/4") - 10 mm (3/8") |
| Auto Anchor Compatible | Yes |
About
Muir HR1600 Stainless Horizontal Windlass | Vessels 12–16m.
Muir HR1600 Stainless Horizontal windlass design for vessels 12-16m (39 – 52ft). The MUIR HR1600 Stainless windlass – a high-performance horizontal anchor winch designed for strength, durability, and smooth operation. Built from premium marine-grade stainless steel, the HR1600 is ideal for medium to large vessels, offering reliable anchoring power, corrosion resistance, and long-lasting performance at sea.
Drawings
Top View
Side View
Technical Specifications
| Name | Specifications |
|---|---|
| Recommended Vessel Length(m) | 12-16m |
| Recommended Vessel Length(ft) | 39 - 52ft |
| Power Supply Options | DC 12V, DC 24V, DC 48V |
| Compatible Chain Sizes | 6 mm (1/4") - 10 mm (3/8") |
| Auto Anchor Compatible | Yes |
