TMQ i@nchor
Call for Availability
Check it fits your windlass
Confirm this part suits your Muir model — send us your windlass model and serial number and we’ll check it for you.
Talk to a parts specialist
Tell us your windlass model and serial number and we’ll confirm the right part — or find your nearest dealer.
- Genuine Muir parts
- Global dealers
- Australian engineered
The Reliable TMQ i@nchor

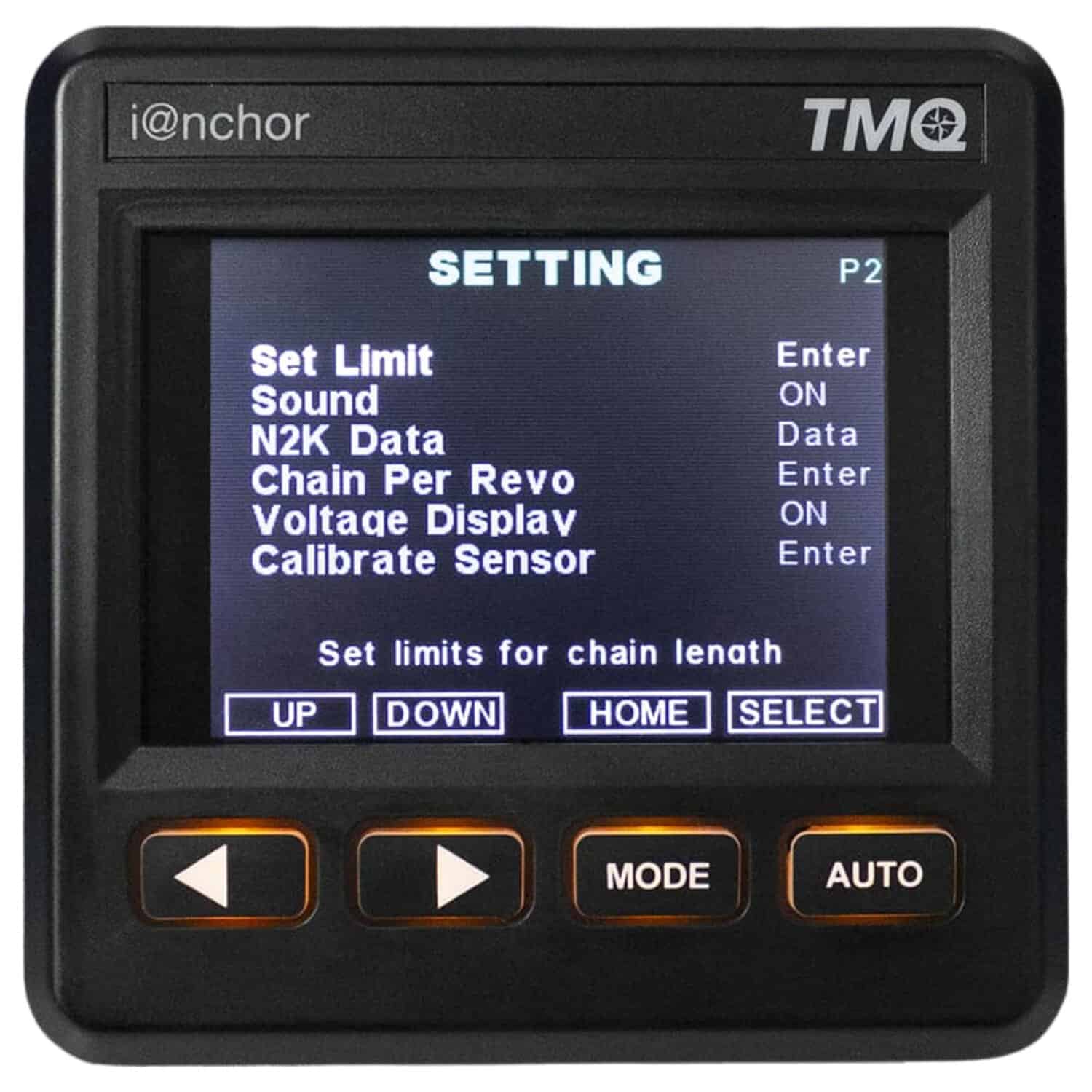

The TMQ i@nchor is an advanced helm-mounted windlass control and chain counter designed to provide safe, accurate, and effortless anchor management. Featuring a full-colour LCD display, automatic deployment and retrieval, NMEA 2000 connectivity, and intelligent depth-based scope calculation, the i@nchor gives boat owners complete control of their anchoring system from the helm.
Designed and manufactured in Australia by TMQ International, the i@nchor is compatible with most electric windlasses and supports chain, rope, or combination rode configurations. Built for both recreational and commercial vessels, it combines reliable windlass control with advanced safety functions including emergency stop, safe docking distance, automatic lockout, and preset deployment limits.
Supporting both 12V and 24V systems, the i@nchor integrates seamlessly into modern marine electronics via NMEA 2000, making it an excellent alternative to traditional chain counter systems.
TMQ i@nchor Features & Specifications
| Feature | Details |
|---|---|
| Display | Full-colour LCD display with adjustable day and night brightness. |
| Windlass Control | Manual Up and Down control directly from the helm. |
| Automatic Control | Automatically deploys or retrieves the anchor to a preset rode length. |
| Chain Counter | Displays live chain, rope or combination rode length. |
| Rode Types | Supports Chain, Rope and Chain & Rope configurations. |
| NMEA 2000 | Compatible with standard NMEA 2000 windlass communication. |
| Depth-Based Scope | Automatically calculates rode length using water depth and a user-defined multiplier. |
| Safe Docking Stop | Stops the windlass before the anchor reaches the bow roller. |
| Emergency Stop | Immediate stop function for added safety. |
| Power Supply | 12V / 24V DC. |
| Country of Origin | Designed and manufactured in Australia. |
Package Inclusions
AutoAnchor TMQ i@nchor Kit Includes:
- TMQ i@nchor Display Unit
- Snap-on Protective Cover
- 304 Stainless Steel Mounting Screws
- Installation Manual
Note: Sensor, magnet, NMEA 2000 cable and extension cables may be supplied separately depending on the selected kit.
About
The Reliable TMQ i@nchor
The TMQ i@nchor is an advanced helm-mounted windlass control and chain counter designed to provide safe, accurate, and effortless anchor management. Featuring a full-colour LCD display, automatic deployment and retrieval, NMEA 2000 connectivity, and intelligent depth-based scope calculation, the i@nchor gives boat owners complete control of their anchoring system from the helm.
Designed and manufactured in Australia by TMQ International, the i@nchor is compatible with most electric windlasses and supports chain, rope, or combination rode configurations. Built for both recreational and commercial vessels, it combines reliable windlass control with advanced safety functions including emergency stop, safe docking distance, automatic lockout, and preset deployment limits.
Supporting both 12V and 24V systems, the i@nchor integrates seamlessly into modern marine electronics via NMEA 2000, making it an excellent alternative to traditional chain counter systems.
Specification
TMQ i@nchor Features & Specifications
| Feature | Details |
|---|---|
| Display | Full-colour LCD display with adjustable day and night brightness. |
| Windlass Control | Manual Up and Down control directly from the helm. |
| Automatic Control | Automatically deploys or retrieves the anchor to a preset rode length. |
| Chain Counter | Displays live chain, rope or combination rode length. |
| Rode Types | Supports Chain, Rope and Chain & Rope configurations. |
| NMEA 2000 | Compatible with standard NMEA 2000 windlass communication. |
| Depth-Based Scope | Automatically calculates rode length using water depth and a user-defined multiplier. |
| Safe Docking Stop | Stops the windlass before the anchor reaches the bow roller. |
| Emergency Stop | Immediate stop function for added safety. |
| Power Supply | 12V / 24V DC. |
| Country of Origin | Designed and manufactured in Australia. |
Package Inclusions
Package Inclusions
AutoAnchor TMQ i@nchor Kit Includes:
- TMQ i@nchor Display Unit
- Snap-on Protective Cover
- 304 Stainless Steel Mounting Screws
- Installation Manual
Note: Sensor, magnet, NMEA 2000 cable and extension cables may be supplied separately depending on the selected kit.
