Remote Control Range · Universal Fit · NOW WITH i@nchor
Windlass Remote Controls
& Chain Counters
Wired and wireless windlass remote controls, digital chain and rope counters, and fully automatic anchoring — now including the Australian-made TMQ i@nchor series with colour display, depth-linked auto anchoring and NMEA 2000 as standard.
55+
Years of manufacturing
45+
Remote Controls & Parts
Global
Dealer & parts network
Which Remote Control Do I Need?
Compare every model at a glance — the two new i@nchor columns show where the TMQ range slots in alongside the Auto Anchor models.
| Feature | AA320 | AA342 | AA150 | AA560 | i@nchor TMQ | AA800 | AA710 | AA730 | BLACKBOX TMQ |
|---|---|---|---|---|---|---|---|---|---|
| Windlass control | ✔ | ✔ | — | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
| Chain counter readout | — | — | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
| Automatic anchoring | — | — | — | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
| Depth-linked auto scope | — | — | — | — | ✔ | via app | — | — | ✔ |
| Colour display | — | — | — | — | ✔ | — | — | — | via MFD |
| Wireless | — | — | — | — | — | app | ✔ | — | — |
| NMEA 2000 | — | — | — | — | ✔ | ✔ | — | — | ✔ +Ethernet |
| Dual windlass / auxiliary | — | ✔ | — | ✔ | multi via N2K | ✔ | ✔ | ✔ | dual · sync |
| MFD / glass bridge control | — | — | — | — | — | — | — | — | ✔ Raymarine |
| Typical location | Bow | Bow | Helm | Helm | Helm | Helm | Handheld | Bow / Helm | Glass bridge |
Simple Controls
— bow & deck
Wired controllers installed at the bow, inside the chain locker, for direct control of windlasses, drum winches or anchor winches.
AA320AA320 Remote Control
Simple, robust up/down single-speed control for one windlass — the entry point to the range.
AA342AA342 Remote Control
Four-button control for dual single-speed windlasses, a two-speed windlass, or windlass + auxiliary such as a bow thruster.
Helm Counters & Controls
Flush-mounted at the helm — chain counter readout and windlass control at your fingertips. Four tiers, from readout-only to the NMEA 2000 flagship.
AA150AA150 Control And Counter
Chain counter readout only — pair it with any control solution when you just need to see how much rode is out.
AA560AA560 Control and Counter
Readout and windlass control combined in one helm-mounted unit — the all-rounder of the panel series.
AA800AA800 Control And Counter
The flagship: readout, control and NMEA 2000 compliance so your chain counter talks to the vessel’s electronics network.

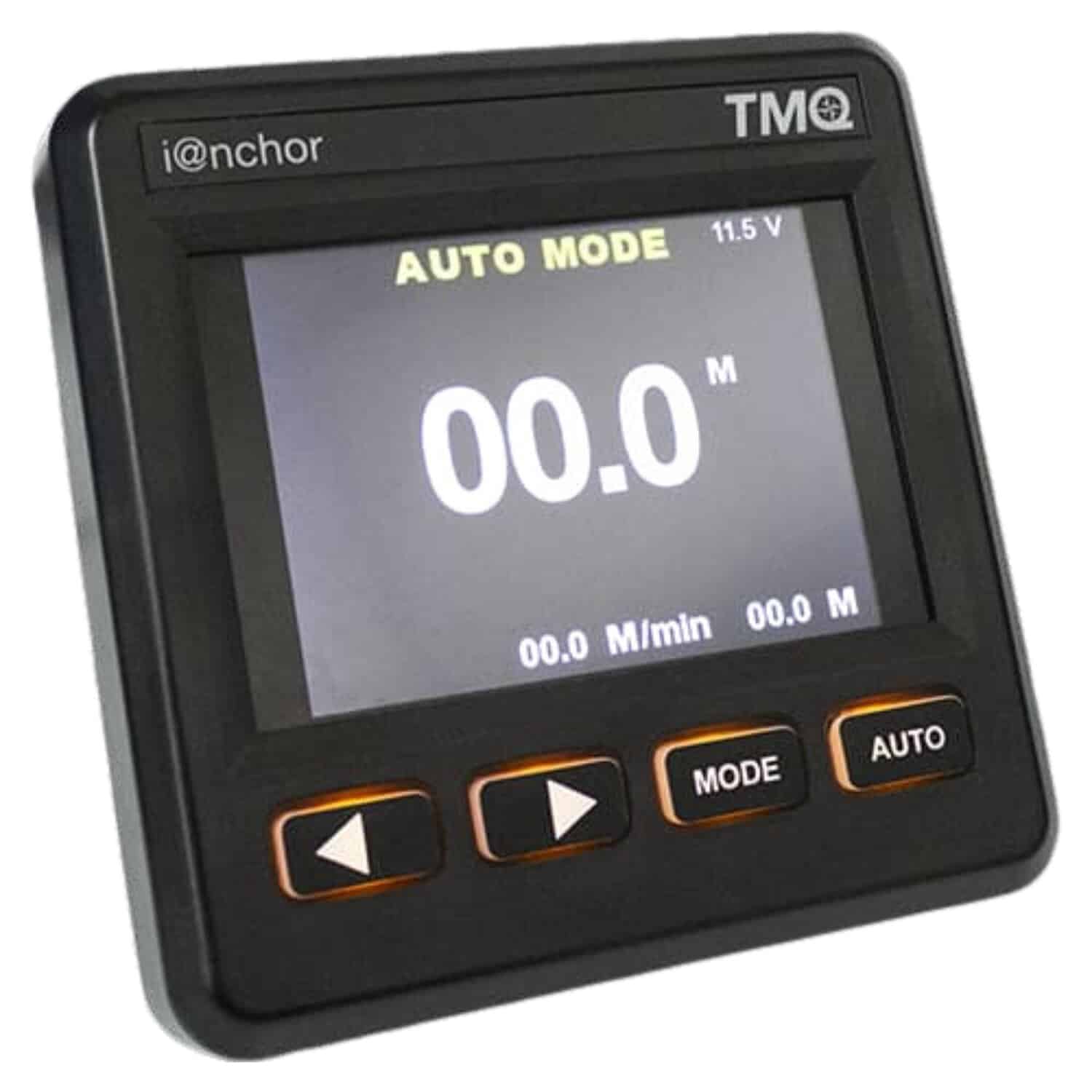

i@nchorTMQ i@nchor
Advanced colour LCD windlass control with integrated chain counter, automatic anchoring modes, NMEA 2000 connectivity, and intelligent depth-based scope control.
Wireless & Handheld Remotes
emote control, live chain/line readout and fully automatic anchor deployment and retrieval in your hand. Each kit includes a base station wired to the windlass with a single cable.
AA710AA710 Wireless Remote Control and Counter
Handheld wireless remote with live anchor-depth readout and full automatic deployment/retrieval. External antenna recommended for thick hulls or long runs from the base station.
AA730AA730 Wired Remote Control and Counter
Identical functionality to the AA710 — control, counter and automatic anchoring — in a wired version for a guaranteed connection.
INTEGRATED BRIDGE & COMMERCIAL SYSTEMS

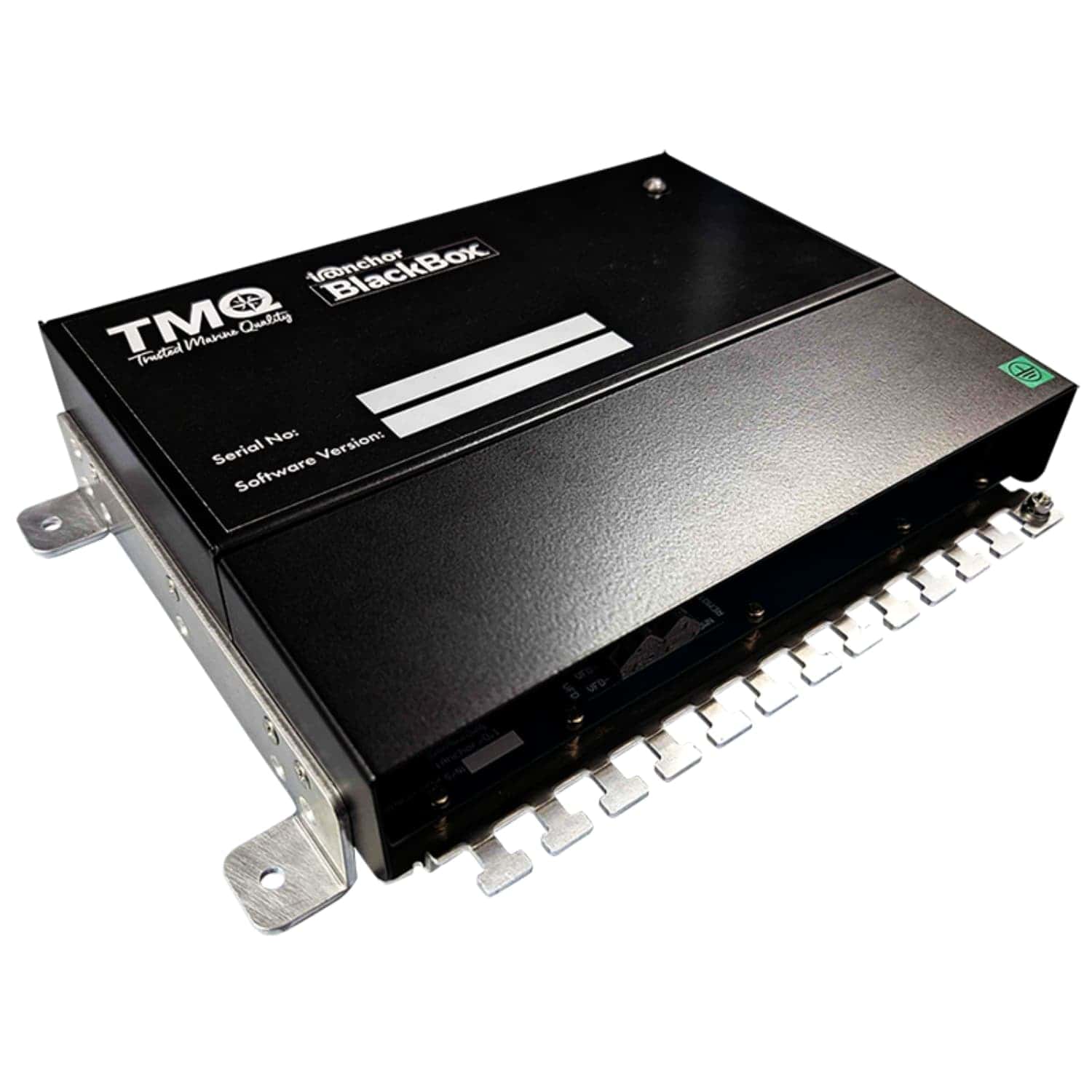

i@nchor BlackBox
Anchor control on the glass bridge — no dedicated display head. Run one or two anchors from Raymarine Glass Bridge MFD apps or any web browser on the vessel network.
Dual-anchor control — independent (async) or synchronised: UP on either panel drives both anchors10/100 Mbps RJ45 Ethernet, NMEA 2000 & IEC 61162 — Raymarine today, designed for future MFD integrationLive length, rate and winch duty-cycle readouts — desired lengths into the hundreds of metresTwo sensor inputs · up to three remote inputs · optional isolated serial portOptional VFD output for large electric & hydraulic systems · per-channel solenoid driveCompact 248 × 118 × 49.5 mm flange-mount box — built in Brisbane by TMQ (Lloyd’s, BV & ClassNK certified)ENQUIRE — MEGA & COMMERCIALi@nchor BlackBoxTMQ i@nchor BlackBox
Glass bridge windlass control system with dual-anchor support, Ethernet, NMEA 2000 connectivity, and advanced commercial vessel integration.
Parts & Sensors
Base stations, sensors, magnets and cabling for both the Auto Anchor and i@nchor systems. i@nchor kits use their own sensor and cable set — not interchangeable with AA parts.
AA702 Base Station

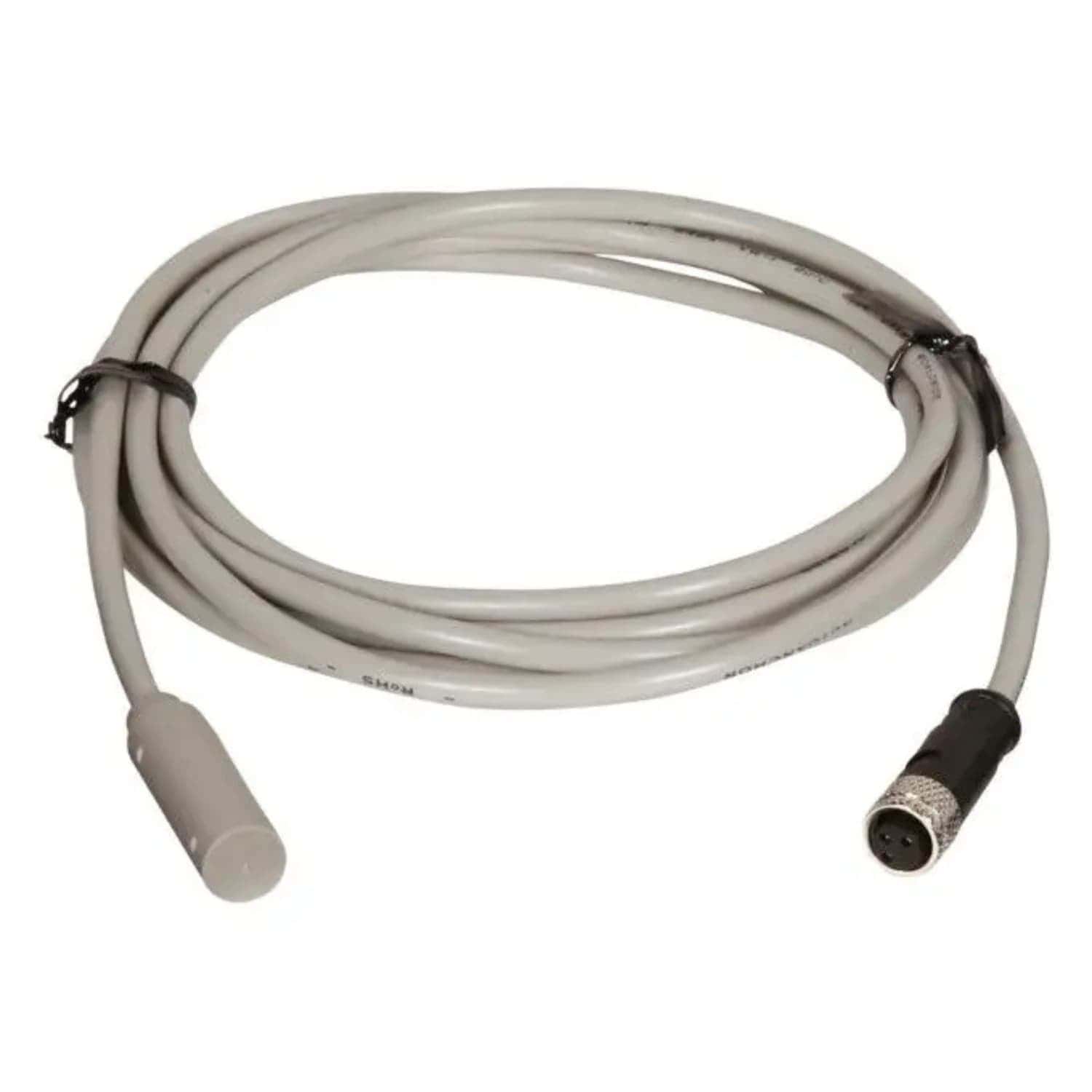

View ProductTMQ i@nchor Sensor
View Product
AA All Chain Sensor (Black)
View Product
AA CABLE M8
View ProductRemote Control FAQs
Matched by FAQPage schema for rich results and AI answers.
Will Auto Anchor work with my existing windlass?
Yes — Auto Anchor systems are universal and compatible with most vertical windlasses, horizontal windlasses, drum winches and anchor winches, not just Muir models. They can also control auxiliary equipment such as bow thrusters, davits or deck lights.
Will the i@nchor work with my Muir windlass?
Yes — the i@nchor suits most windlasses, including Muir vertical, horizontal and drum winches. It uses the same gypsy magnet-and-sensor counting method as the Auto Anchor range, wires to standard 12/24V solenoid controls, and supports chain, rope or combination rodes.
What's the difference between the i@nchor and the AA560?
Both combine chain counter and windlass control in one helm unit. The i@nchor adds a colour day/night display, automatic drop/raise to a set length, depth-linked scope setting, NMEA 2000 output to your chartplotter, and extra safety features — emergency stop, auto screen lock and a safe docking stop. It’s Australian-made by TMQ in Brisbane.
What is the difference between the AA710 and AA730?
Both give you remote windlass control, a live chain counter readout and full automatic anchor deployment/retrieval. The AA710 is wireless (handheld remote + base station); the AA730 is the wired version. For thick hulls or long distances from the base station, choose the AA710 with an external antenna.
Which Auto Anchor model supports NMEA 2000?
The AA800 panel-mounted control and counter is the latest model and complies with NMEA 2000 standards, letting the chain counter integrate with your vessel’s marine electronics network.
Not Sure Which Setup Fits Your Vessel?
The factory team in Kingston, Tasmania can spec the right control, counter and sensor combination for your windlass — free.
Get Expert Advice
